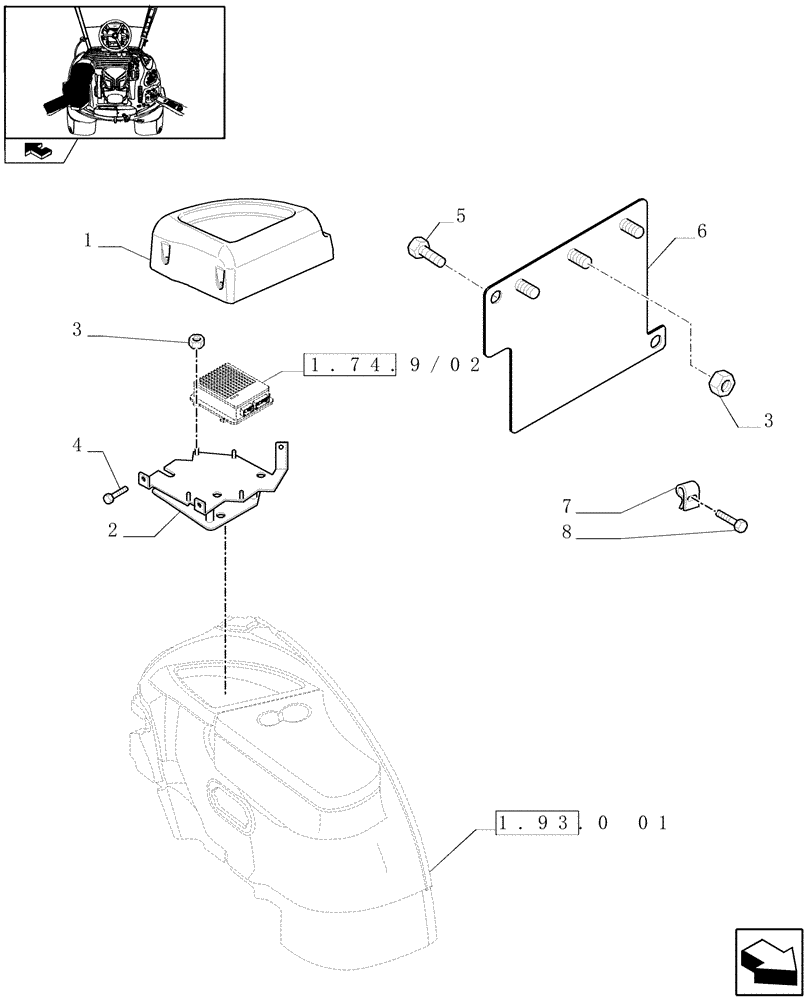

Запчасти Case IH PUMA 140 (1.93.0/03) - AUTOGUIDANCE SYSTEM READY - CONTROLS COVER AND RELATIVE PARTS (VAR.330077-331077) (10) - OPERATORS PLATFORM/CAB

1

84238871

CAB STORAGE BOX

LH, Rear

1шт.

2

87679455

SUPPORT

1шт.

3

15896211

NUT,M6, Cl 8

7шт.

4

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

3шт.

5

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

6

87744795

SUPPORT

1шт.

7

14371771

SPRING NUT,M6, U, 24.3mm long

2шт.

8

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.
