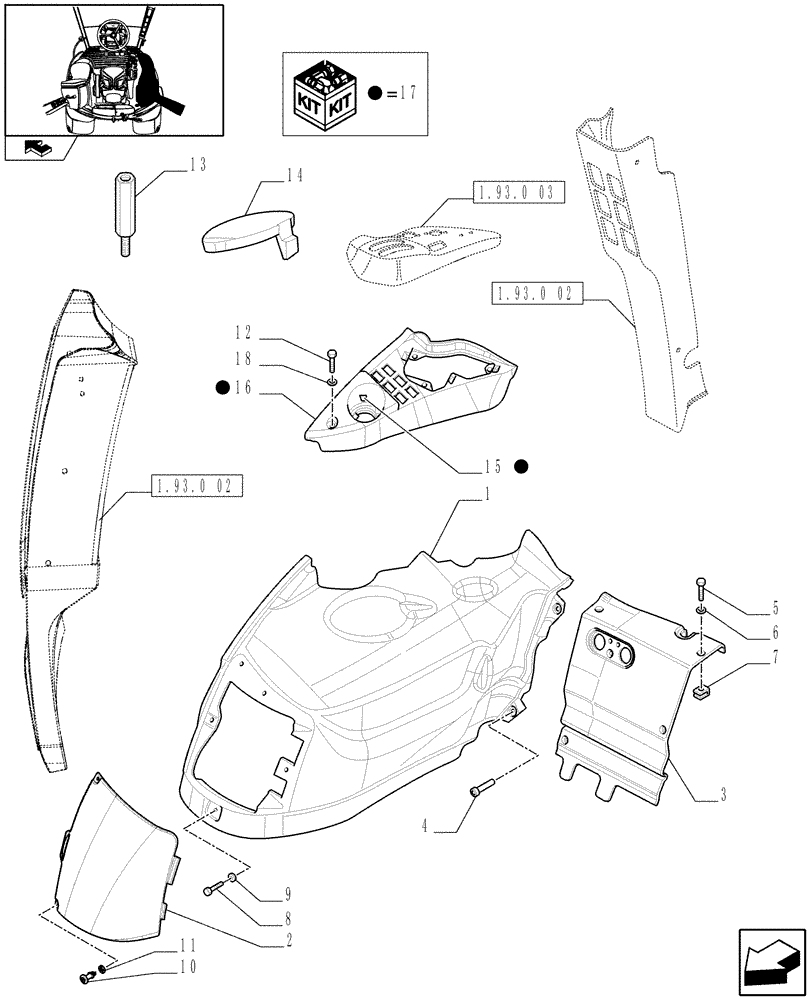

Запчасти Case IH PUMA 140 (1.93.0/01) - ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES - CONTROLS COVER - RH (VAR.330856-330862-338851) (10) - OPERATORS PLATFORM/CAB

1

84208269

PADDING

RH, Serial Range: -C6754

1шт.

1

84242720

TRIM PANEL

RH, Start Serial: D6754

1шт.

2

87734672

COVER

1шт.

3

87479668

PANEL

1шт.

4

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

2шт.

5

15646907

SELF-TAP SCREW,Pozidriv Pan Hd, 16mm L

4шт.

6

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

7

87567755

SPRING NUT,M5

NUT

2шт.

8

15647001

SELF-TAP SCREW,Pozidriv Pan Hd, M12 x 19mm

4шт.

9

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

10

87734455

FASTENER

2шт.

11

87734456

RETAINER,13mm OD x 0.8mm Thk

2шт.

12

10589928

SCREW,Flat Hd, M6 x 20.2mm OAL 10mm Collar

M6 x 22

4шт.

13

87493058

SPACER,Hex, M6 x 1 x 47mm L

1шт.

14

87752306

BLANK-OFF PLUG,Grey

1шт.

15

304061A1

BUMPER,Rubber

3шт.

16

84206694

1шт.

17

84206691

COVER

1шт.

18

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.
