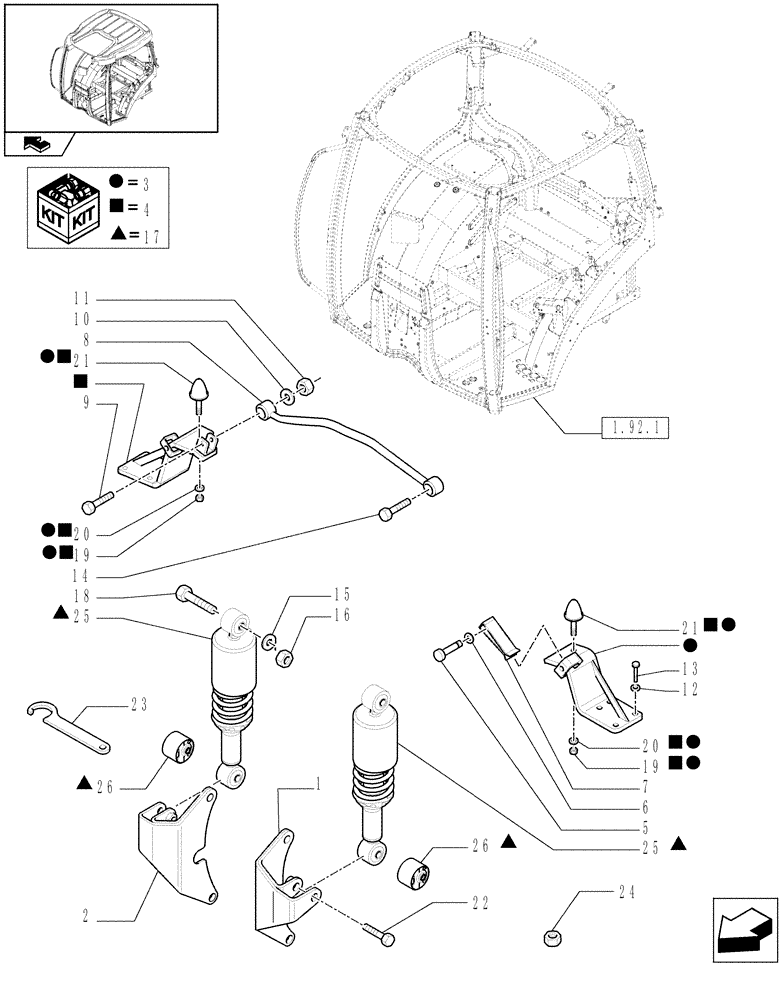

Запчасти Case IH PUMA 140 (1.92.6/01) - CABIN SUSPENSION - REAR SUPPORTS (VAR.330658-331658) (10) - OPERATORS PLATFORM/CAB

1

87520938

SUPPORT

LH

1шт.

2

87520940

SUPPORT

RH

1шт.

3

87521110

SUPPORT

LH, ASSY

1шт.

4

87521122

SUPPORT

RH, ASSY

1шт.

5

87543582

PIN,20mm OD x 104mm L

4шт.

6

11066871

CIRCLIP,M20

4шт.

7

87357896

STRAP,165mm L

2шт.

8

87591850

TIE-ROD,2 x 38.9mm ID

1шт.

9

11125721

BOLT,Hex, M20 x 100, 8.8

1шт.

10

14497101

WASHER,M20 x 37 x 3

2шт.

11

82020635

NUT,Prevailing Torque, M20 x 2.5 x 20mm, Cl8

M20

1шт.

12

10520324

WASHER,18.4mm ID x 32mm OD x 4mm Thk

8шт.

13

11244621

BOLT,Hex, M18 x 1.5 x 60, 10.9

8шт.

14

11126121

BOLT,Hex, M20 x 120, 8.8

1шт.

15

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

6шт.

16

12577311

LOCK NUT,Prevailing Torque, M14 x 2.0 x 16.6mm, Cl8, ZND

M20

2шт.

17

84183933

SERVICE KIT

ASSY

1шт.

18

11117021

BOLT,Hex, M14 x 90, 8.8

2шт.

19

12577511

NUT,M12 x 1.75, Cl 8

2шт.

20

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

21

82025784

RUBBER PAD,M12 x 1.75

2шт.

22

86518210

BOLT,Hex, M14 x 75mm, Cl 8.8

2шт.

23

82034842

SPECIAL WRENCH

1шт.

24

82039222

SPECIAL NUT,M14 x 1.5, Cl 10.9

2шт.

25

84183931

SHOCK ABSORBER

2шт.

26

84183930

ISOLATOR

2шт.
