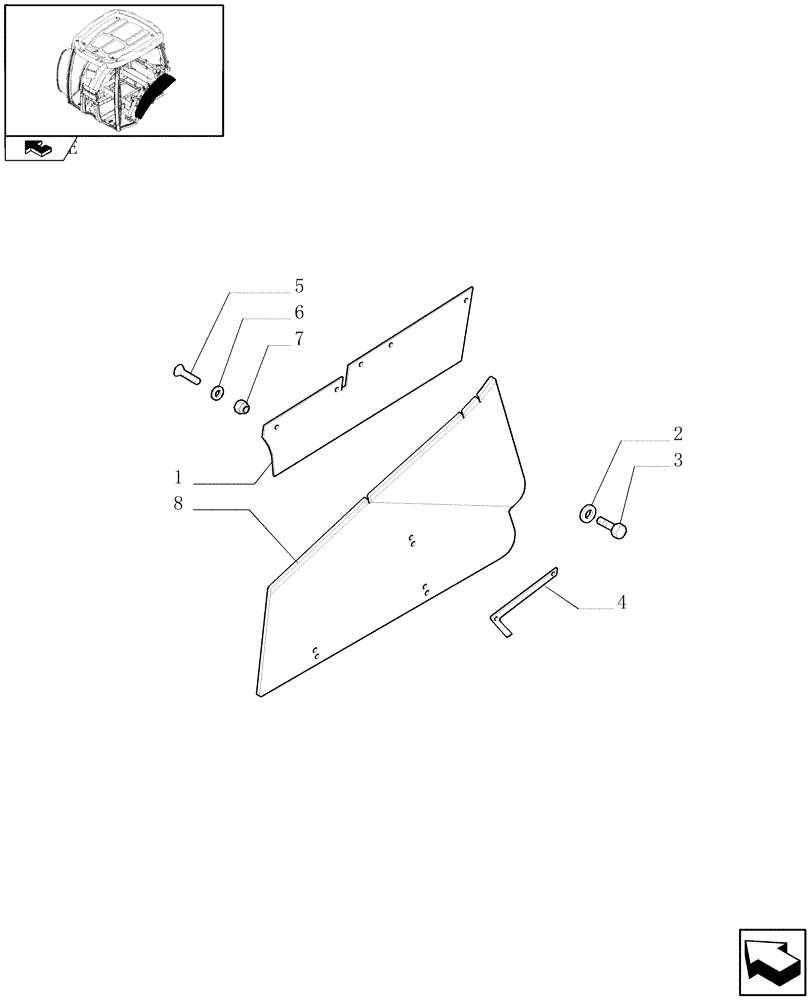

Запчасти Case IH PUMA 140 (1.92.5/02[02]) - WIDE REAR FENDERS WITH EXTENSIONS - SUPPORTS (VAR.330519-331519) (10) - OPERATORS PLATFORM/CAB

1

87705290

MUDFLAP

2шт.

2

83903813

SPACER,9.80-10.29mm ID x 28.4mm OD x 2.8mm Thk

6шт.

3

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

3

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

6шт.

4

87705291

SUPPORT

2шт.

5

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

4шт.

6

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

20шт.

7

12574211

NUT,M6 x 1, Cl 8

10шт.

8

87484525

DEFLECTOR

RH

1шт.

8

84156116

DEFLECTOR

1шт.
