Запчасти Case IH PUMA 140 (1.90.2/01) - MID MOUNTED VALVES - COVER (10) - OPERATORS PLATFORM/CAB

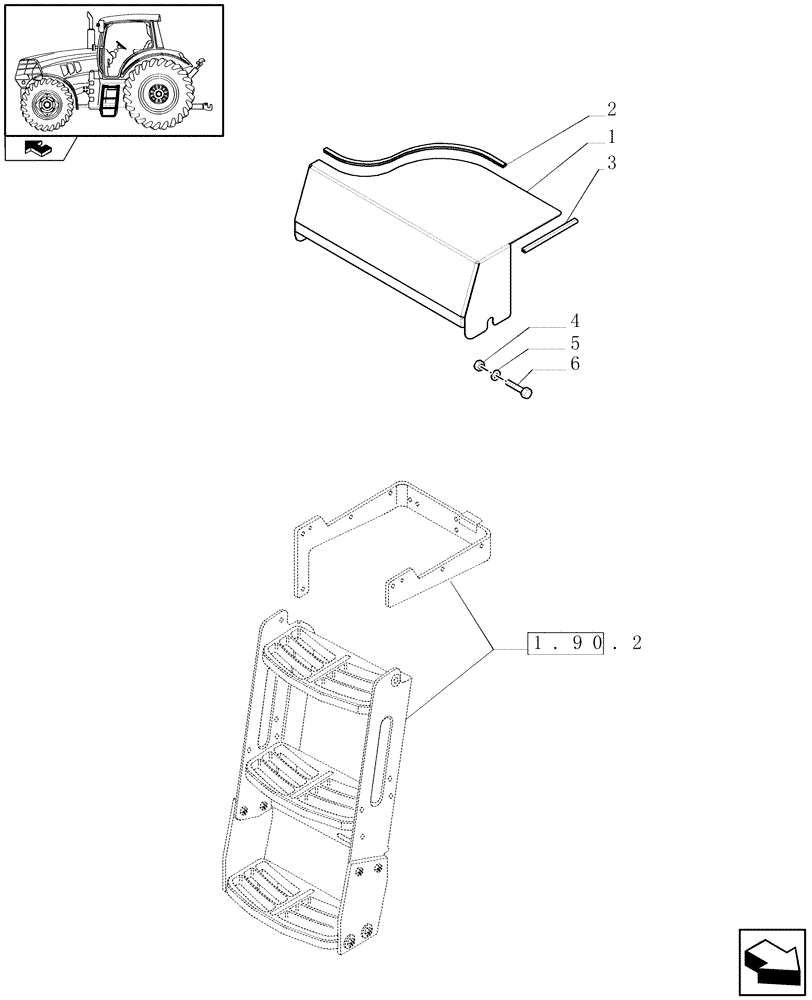

Схема запчастей Case IH PUMA 140 - (1.90.2/01) - MID MOUNTED VALVES - COVER (10) - OPERATORS PLATFORM/CAB
5
home
6
4
1
1.90.2
3
2

Артикул

Название

Примечание

Количество

1

84121783

COVER

1шт.

2

84122671

TRIM,128mm L

1шт.

3

82036856

MOLDING,355mm L

1шт.

4

11701711

NUT,Hex, M10, Cl 8, ZND

3шт.

5

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

6шт.

6

16040821

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

3шт.

Выбрано товаров: 6
