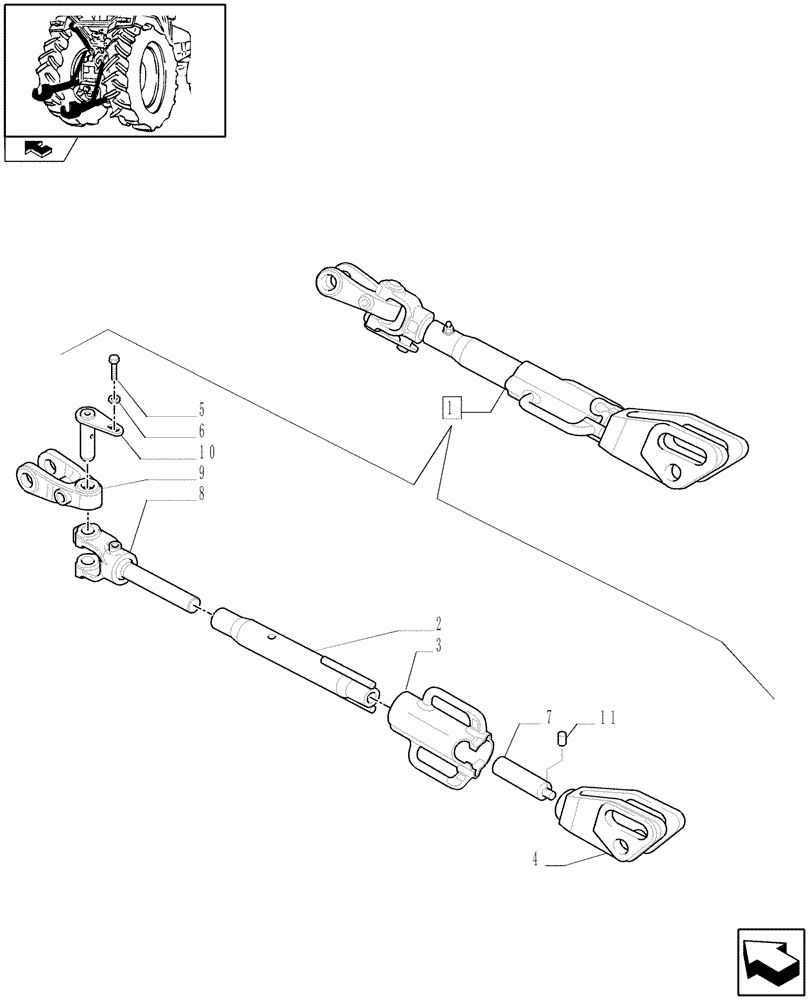

Запчасти Case IH PUMA 140 (1.89.6/ B) - ADJUSTABLE LIFT-ROD - BREAKDOWN (09) - IMPLEMENT LIFT

1

87377623

LIFT LINK

LH, ASSY

1шт.

1

87377622

LIFT LINK

RH, ASSY

1шт.

2

47125893

TUBE,M30 x 3

1шт.

3

5198072

HANDLE

1шт.

4

87390512

YOKE

1шт.

5

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

6

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

7

87390515

THREADED ROD,M33 x 3

1шт.

8

87655880

TIE-ROD

1шт.

9

47130648

YOKE,28mm D x 25mm D

1шт.

10

47130640

PIN,25mm OD x 92mm L

1шт.

11

14607471

LOCK PIN,M8 x 50, Slotted

1шт.
