Запчасти Case IH PUMA 140 (1.89.6[02]) - TOOLING CONNECTION UNIT - LIFT ARMS, TOP LINK AND TIE-RODS (09) - IMPLEMENT LIFT

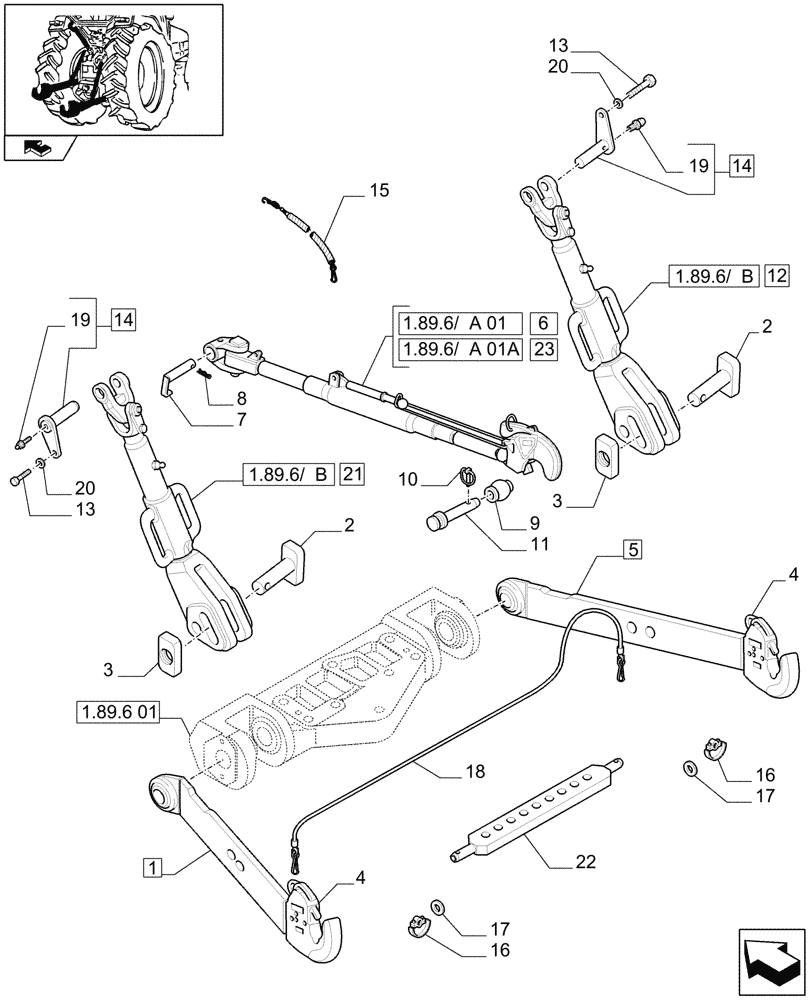

Схема запчастей Case IH PUMA 140 - (1.89.6[02]) - TOOLING CONNECTION UNIT - LIFT ARMS, TOP LINK AND TIE-RODS (09) - IMPLEMENT LIFT
1.89.6/ a 01
9
16
10
22
6
7
20
16
17
8
15
18
14
11
23
13
3
2
1
19
2
13
12
19
21
home
4
4
17
5
14
3
20
1.89.6/ a 01a
1.89.6 01
1.89.6/ b
1.89.6/ b

Артикул

Название

Примечание

Количество

1

87377617

LOWER LINK

LH

1шт.

2

47133610

PIN,26mm OD x 110mm L

2шт.

3

47133611

THRUST WASHER

2шт.

4

87315107

HOOK

2шт.

5

87377616

LOWER LINK

RH

1шт.

6

84157355

UPPER LINK

ASSY, TOP LINK CAT.3, Serial Range: -C7395

1шт.

7

47133787

PIN,27.9mm OD x 175mm L

1шт.

7

5191449

PIN,27.9mm OD x 152mm L

1шт.

Basildon Production only

1шт.

Power Take-Off 540/1000 RPM with Reversable Shaft, VAR.330800

1шт.

8

578668

COTTER PIN,10.7mm OD x 80mm L

1шт.

9

5116059

BUSHING,25.4mm ID x 60mm OD x 51mm L

1шт.

9

5116060

BUSHING,32mm ID x 60mm OD x 51mm L

1шт.

10

5166585

LOCK PIN,11mm OD

1шт.

11

822483

PIN,25.5mm OD x 137mm L

1шт.

11

44015196

PIN,31.75mm OD x 146mm L

1шт.

12

87377622

LIFT LINK

RH

1шт.

13

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

2шт.

14

47130642

PIN,25mm OD x 92mm L

2шт.

15

5174402

LINK CHAIN,1500mm L

1шт.

16

5130779

ECCENTRIC,11mm OD, Shaft Diameter 29.00mm

2шт.

16

5130780

ECCENTRIC,15.5mm OD, Shaft Diameter 37.00mm

2шт.

17

44017710

BUSHING,37mm ID x 64mm OD x 44.7mm L

2шт.

17

44017819

BUSHING,28.7mm ID x 64mm OD x 44.7mm L

2шт.

18

5116063

ROPE,4500mm L

1шт.

19

87414

LUBE NIPPLE,1/4" - 28

2шт.

20

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

21

87377623

LIFT LINK

LH

1шт.

22

5199253

SUPPORT

1шт.

Linkage Drawbar, VAR.330933

1шт.

23

84517031

UPPER LINK

ASSY, TOP LINK CAT.3, Start Serial: D7395

1шт.

Выбрано товаров: 31
