(1.89.5/01) - SLIDER TOW HOOK WITH AUTO SWIVEL COUPLING LESS SWINGING DRAWBAR AND WITH WELDED K80 (GERMANY) (VAR.330955)

Запчасти Case IH PUMA 140 (1.89.5/01) - SLIDER TOW HOOK WITH AUTO SWIVEL COUPLING LESS SWINGING DRAWBAR AND WITH WELDED K80 (GERMANY) (VAR.330955) (09) - IMPLEMENT LIFT

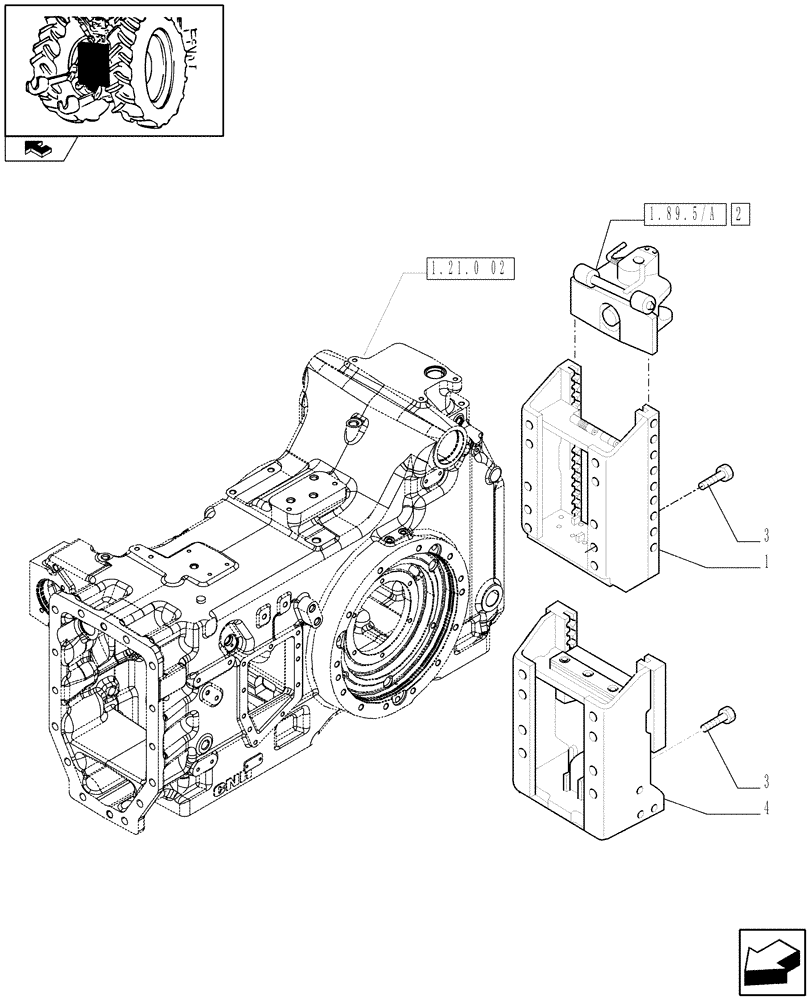

Схема запчастей Case IH PUMA 140 - (1.89.5/01) - SLIDER TOW HOOK WITH AUTO SWIVEL COUPLING LESS SWINGING DRAWBAR AND WITH WELDED K80 (GERMANY) (VAR.330955) (09) - IMPLEMENT LIFT
3
1
1.21.0 02
1.89.5/a
home
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87470455

HITCH BRACKET

, Serial Range: -C6978

1шт.

2

82029387

TOW HOOK

TOW HOOK ASSY

1шт.

3

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

8шт.

4

84351250

HITCH BRACKET

, Start Serial: D6978

1шт.

Выбрано товаров: 4
