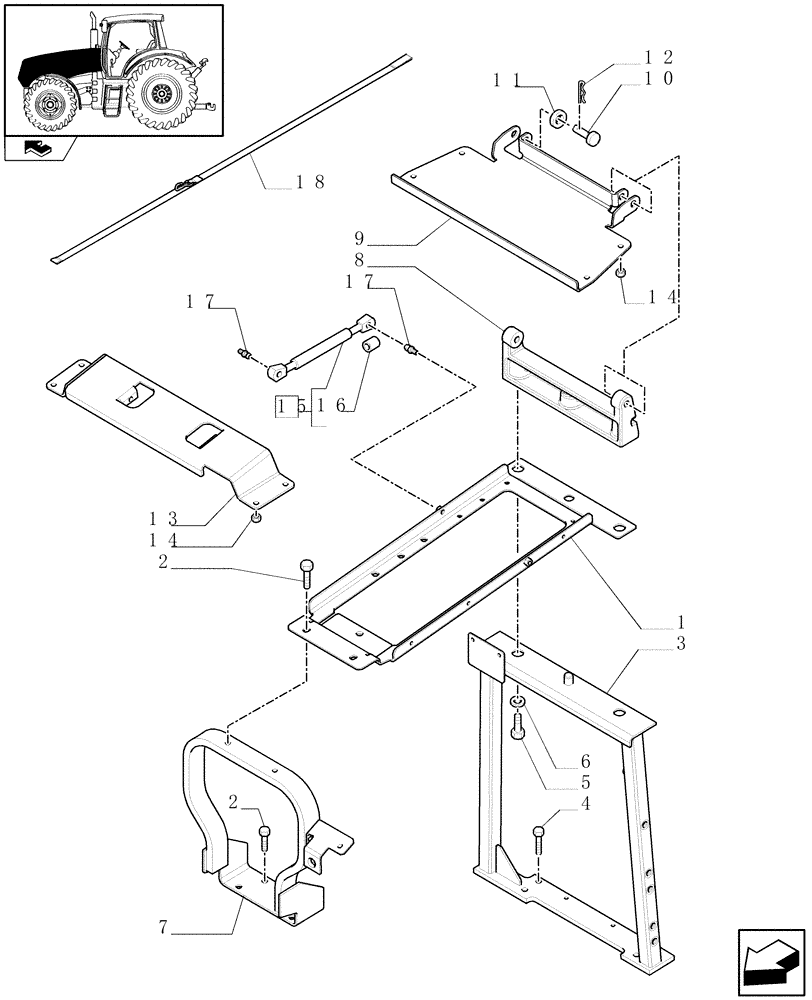

Запчасти Case IH PUMA 140 (1.83.0[02A]) - HOOD - SUPPORTS - D6653 - C6996 (08) - SHEET METAL

1

87613373

SUPPORT

, Serial Range: -C6822

1шт.

1

84337705

SUPPORT

, Start Serial: D6822

1шт.

2

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

6шт.

3

84148993

SUPPORT

1шт.

4

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

5

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

2шт.

6

14496901

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

7

87727191

SUPPORT

1шт.

8

87353681

HINGE

1шт.

9

84153356

PLATE

1шт.

10

87353680

PIN,12.2mm OD x 44mm L

2шт.

11

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

12

82026318

COTTER PIN,1/8 x 2 5/16

2шт.

13

87612108

PANEL

1шт.

14

14059311

FLANGE NUT,M8 x 1.25, Flg, Cl 8

8шт.

15

82036570

GAS STRUT

2шт.

16

82019394

SEAL

1шт.

17

83952214

BALL STUD,M8 x 29.5mm OAL

BALL PIN

4шт.

18

84284508

SECURING STRAP

1шт.
