(1.82.7/07[01]) - 3 ELECTRONIC MID MOUNTED VALVES - DISTRIBUTOR, COVER AND SUPPORT (VAR.330561-333561)

Запчасти Case IH PUMA 140 (1.82.7/07[01]) - 3 ELECTRONIC MID MOUNTED VALVES - DISTRIBUTOR, COVER AND SUPPORT (VAR.330561-333561) (07) - HYDRAULIC SYSTEM

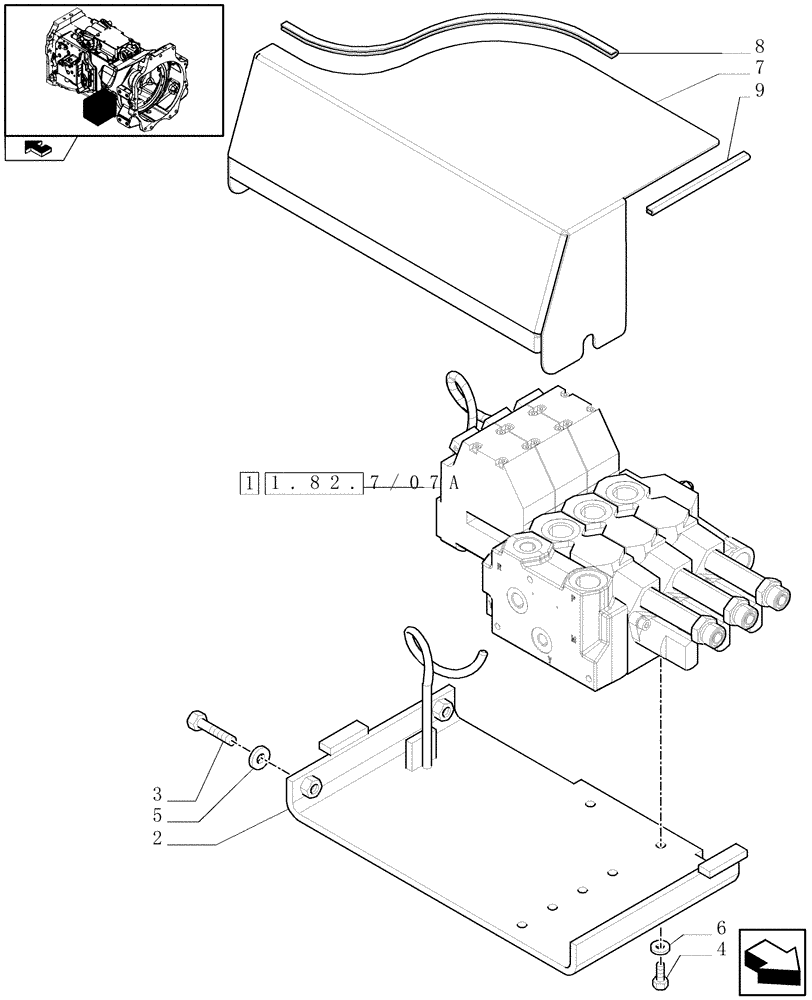

Схема запчастей Case IH PUMA 140 - (1.82.7/07[01]) - 3 ELECTRONIC MID MOUNTED VALVES - DISTRIBUTOR, COVER AND SUPPORT (VAR.330561-333561) (07) - HYDRAULIC SYSTEM
6
5
1
8
3
7
2
9
1.82.7/07a
home
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82038054

CONTROL VALVE

, Serial Range: -C6544

1шт.

84214465R

REMAN-HYD VALVE

PUMA 125, PUMA 140, PUMA 155 (GARU) all (11/09-), Reman For New P/N 82038054

1шт.

84214465C

CORE-VALVE HYD

Return Number

1шт.

1

84214465

CONTROL VALVE

, Start Serial: D6544

1шт.

84214465R

REMAN-HYD VALVE

PUMA 125, PUMA 140, PUMA 155 (GARU) all Start Serial: D6544 (11/09-)

1шт.

84214465C

CORE-VALVE HYD

Return Number

1шт.

2

84121779

SUPPORT

1шт.

3

16040821

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

3шт.

4

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

5

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

6

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

7

84121781

COVER ASSY

1шт.

8

82036856

MOLDING,355mm L

355-360

1шт.

9

84122671

TRIM,128mm L

2шт.
