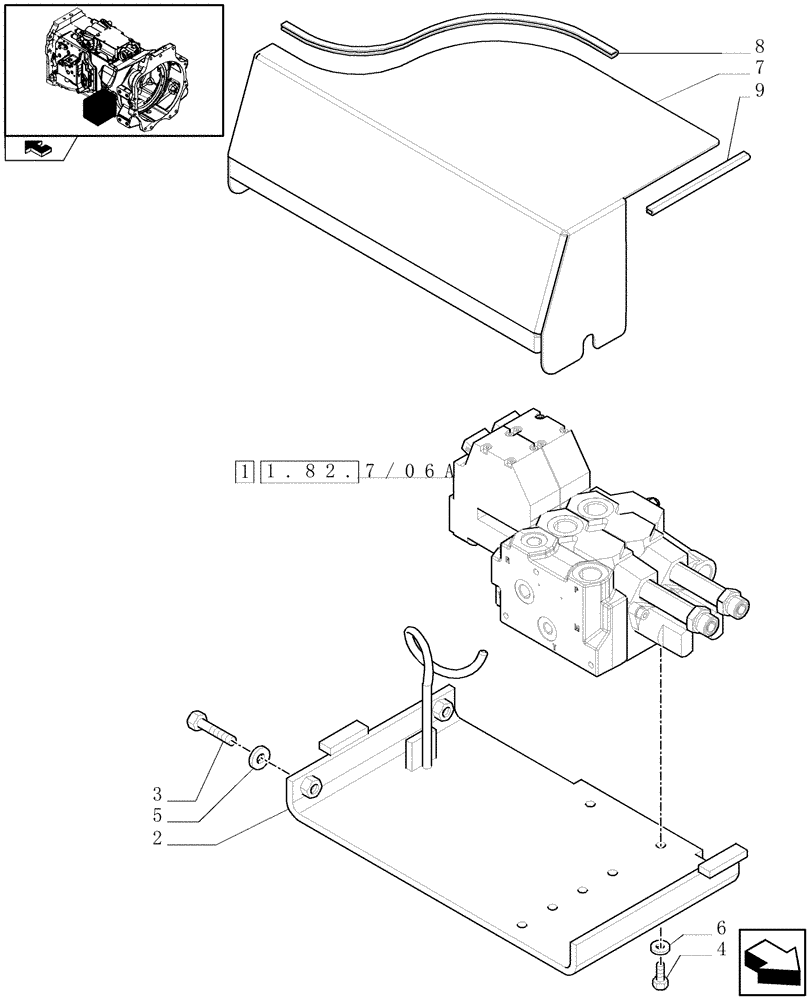

Запчасти Case IH PUMA 140 (1.82.7/06[01]) - 2 ELECTRONIC MID MOUNTED VALVES - DISTRIBUTOR, COVER AND SUPPORT (VAR.330560-333560) (07) - HYDRAULIC SYSTEM

1

82038052

CONTROL VALVE

, Serial Range: -C6544

1шт.

1

84214464

CONTROL VALVE

, Start Serial: D6544

1шт.

1

84214464R

REMAN-HYD VALVE

Reman Valve Assy

1шт.

1

84214464C

CORE-VALVE HYD

Core Return Number

1шт.

2

84121779

SUPPORT

1шт.

3

16040821

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

3шт.

4

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

5

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

6

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

7

84121781

COVER ASSY

1шт.

8

82036856

MOLDING,355mm L

355-360

1шт.

9

84122671

TRIM,128mm L

2шт.
