(1.82.7/05[03]) - 4 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES (EHS1) - VALVE SECTIONS AND QUICK COUPLERS (VAR.330862-338851)

Запчасти Case IH PUMA 140 (1.82.7/05[03]) - 4 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES (EHS1) - VALVE SECTIONS AND QUICK COUPLERS (VAR.330862-338851) (07) - HYDRAULIC SYSTEM

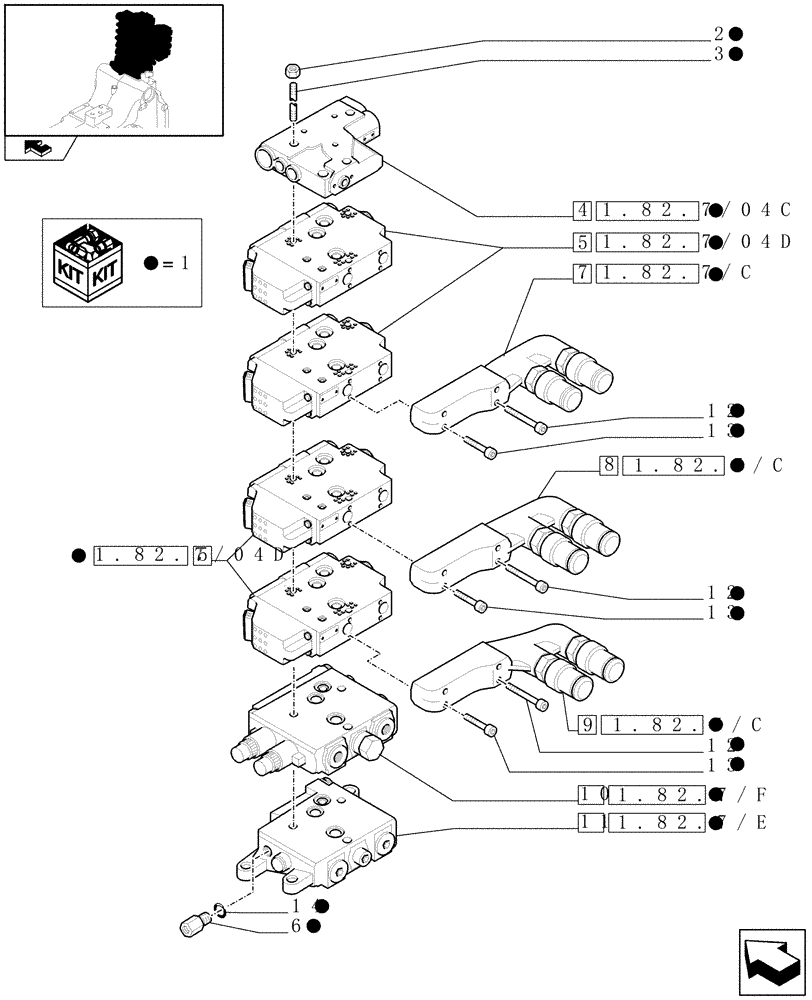

Схема запчастей Case IH PUMA 140 - (1.82.7/05[03]) - 4 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES (EHS1) - VALVE SECTIONS AND QUICK COUPLERS (VAR.330862-338851) (07) - HYDRAULIC SYSTEM
1
3
1
1
1
13
1
13
1
1
1
1
9
1
5
12
1
1
10
12
1
1
1
1.82.7/04c
home
1.82.7/04d
1.82.7/04d
1.82.7/e
1.82.7/f
1.82.7/c
1.82.7/c
1.82.7/c
1
13
8
1
5
1
12
4
11
7
1
2
6
1
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84266085

CONTROL VALVE

ASSY

1шт.

2

5195169

NUT,M8

3шт.

3

47129473

THREADED TIE-ROD

3шт.

4

84230200

HYD VALVE SECTION

ASSY

1шт.

5

84230181

HYD VALVE SECTION

ASSY

4шт.

84230181R

REMAN-HYD VALVE

PUMA 125, PUMA 140, PUMA 155 all GARU (11/09-)

4шт.

84230181C

CORE-VALVE HYD

Return Number

1шт.

6

5191704

CHECK VALVE

Incl. 14

1шт.

7

87381964

QUICK MALE COUPLING

ASSY

1шт.

8

87381963

QUICK MALE COUPLING

ASSY

1шт.

9

87381958

QUICK MALE COUPLING

ASSY

1шт.

10

84175671

VALVE SECTION

ASSY

1шт.

84175671R

REMAN-HYD VALVE

PUMA 125, PUMA 140, PUMA 155 all GARU (11/09-)

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

87730706

CONTROL VALVE

ASSY

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

6шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

6шт.

14

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.
