(1.82.7/05[02]) - 4 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES - VALVE SECTIONS AND QUICK COUPLERS (VAR.330862-338851)

Запчасти Case IH PUMA 140 (1.82.7/05[02]) - 4 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES - VALVE SECTIONS AND QUICK COUPLERS (VAR.330862-338851) (07) - HYDRAULIC SYSTEM

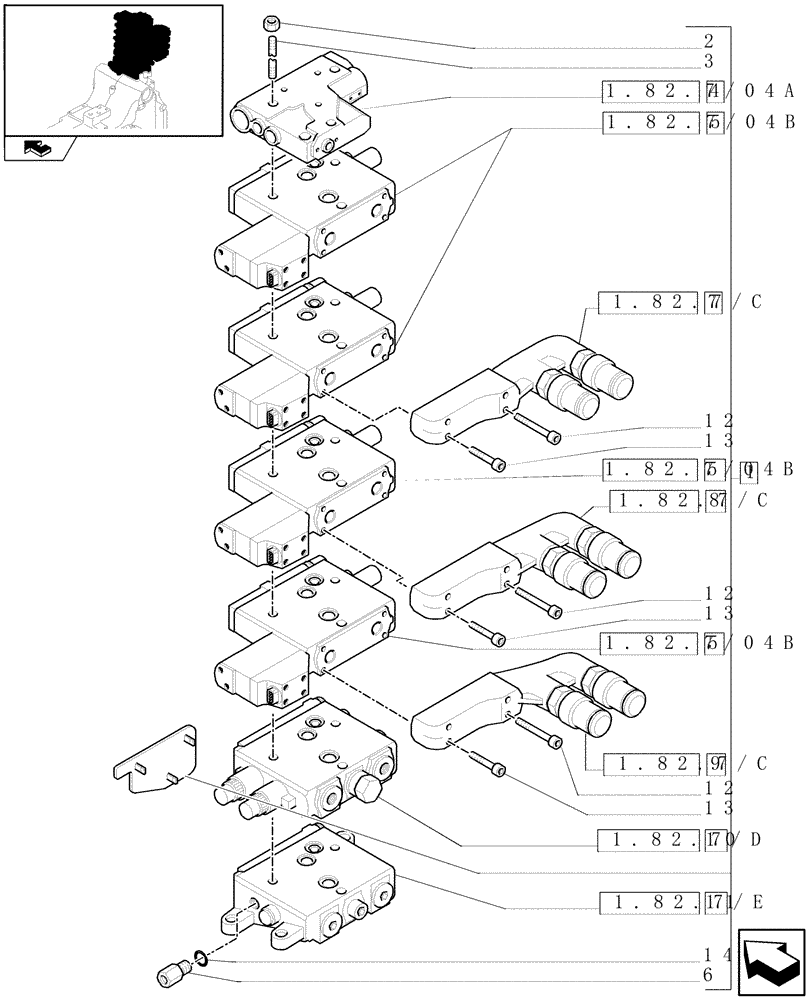

Схема запчастей Case IH PUMA 140 - (1.82.7/05[02]) - 4 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES - VALVE SECTIONS AND QUICK COUPLERS (VAR.330862-338851) (07) - HYDRAULIC SYSTEM
7
10
9
3
11
1.82.7/04b
1.82.7/04a
1.82.7/04b
1.82.7/d
1.82.7/e
1.82.7/c
1.82.7/c
1.82.7/c
1.82.7/04b
home
6
8
12
13
14
13
5
4
2
12
5
1
13
12
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87546172

CONTROL VALVE

1шт.

2

5195169

NUT,M8

CL 10, M8 x 1.25

3шт.

3

47129473

THREADED TIE-ROD

3шт.

4

47123078

HYDRAULIC VALVE

1шт.

5

84125295

VALVE SECTION,Electronic Control

4шт.

84125295R

REMAN-HYD VALVE

PUMA 125, PUMA 155, PUMA 140 all GARU (11/09-)

4шт.

84125295C

CORE-VALVE HYD

Return Number

1шт.

6

5191704

CHECK VALVE

Incl. 14

1шт.

7

87381964

QUICK MALE COUPLING

1шт.

8

87381963

QUICK MALE COUPLING

1шт.

9

87381958

QUICK MALE COUPLING

1шт.

10

87546170

CONTROL VALVE

1шт.

84175671R

REMAN-HYD VALVE

PUMA 125, PUMA 140, PUMA 155 all TRACTOR - GARU (11/09-) Reman for New P/N 87546170

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

87730706

CONTROL VALVE

1шт.

87730706R

REMAN-HYD VALVE

PUMA 125, PUMA 140, PUMA 155 ALL TRACTOR - GARU ALL (11/09-)

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

6шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

6шт.

14

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.
