(1.82.7/05[01]) - 4 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES - DISTRIBUTOR, COVER AND OIL COLLECTOR - C6690 (VAR.330862-338851)

Запчасти Case IH PUMA 140 (1.82.7/05[01]) - 4 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES - DISTRIBUTOR, COVER AND OIL COLLECTOR - C6690 (VAR.330862-338851) (07) - HYDRAULIC SYSTEM

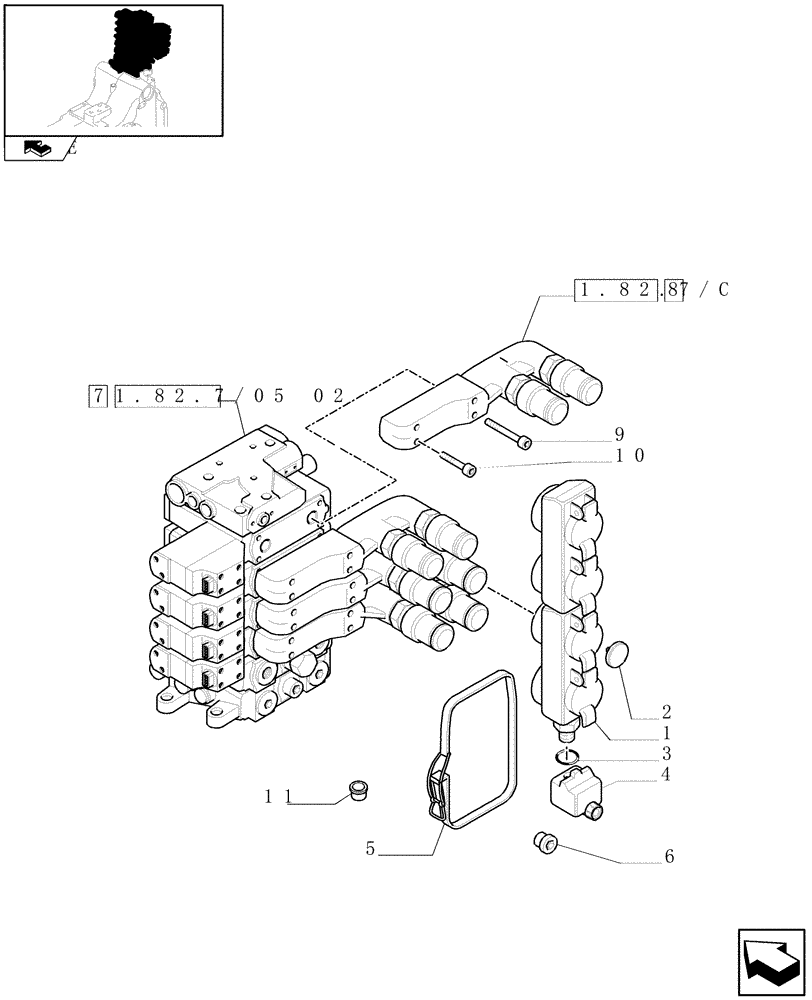

Схема запчастей Case IH PUMA 140 - (1.82.7/05[01]) - 4 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES - DISTRIBUTOR, COVER AND OIL COLLECTOR - C6690 (VAR.330862-338851) (07) - HYDRAULIC SYSTEM
7
5
10
6
4
2
8
1
home
1.82.7/c
1.82.7/05 02
11
3
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87733580

DUST CAP

Incl. 2

2шт.

2

82029892

LENS

Green

2шт.

2

82029893

LENS

Blue

2шт.

2

82029894

DISC,20mm OD x 5.5mm Thk, Green, PA6+30% Glass Fiber

Brown

2шт.

2

82029895

DISC,20mm D, Black

Black

2шт.

3

82029356

SEAL,20.00mm OD x 3.00mm

2шт.

4

84161329

BOTTLE

1шт.

5

82031973

SPRING CLIP

1шт.

6

82035752

PLASTIC PLUG,7.00mm, 11.00mm OD, 5.5mm D

4шт.

7

87546172

CONTROL VALVE

1шт.

8

87381965

QUICK MALE COUPLING

1шт.

9

14305671

SCREW,M6 x 35mm, Cl 12.9

2шт.

10

14306071

SCREW,M6 x 50mm, Cl 12.9

2шт.

11

81862738

PLUG,M38 x 28 x 5mm

28MM

6шт.
