(1.82.7/04[03]) - 3 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES (EHS1) - VALVE SECTIONS AND QUICK COUPLERS (VAR.330856)

Запчасти Case IH PUMA 140 (1.82.7/04[03]) - 3 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES (EHS1) - VALVE SECTIONS AND QUICK COUPLERS (VAR.330856) (07) - HYDRAULIC SYSTEM

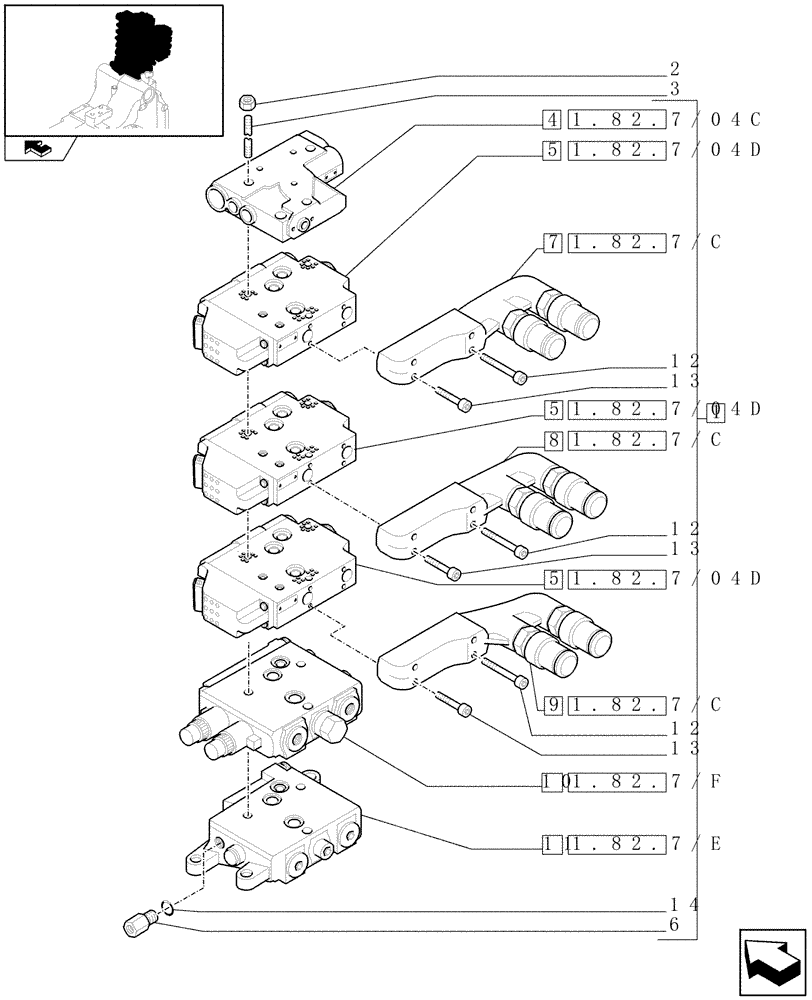

Схема запчастей Case IH PUMA 140 - (1.82.7/04[03]) - 3 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES (EHS1) - VALVE SECTIONS AND QUICK COUPLERS (VAR.330856) (07) - HYDRAULIC SYSTEM
3
9
13
8
5
10
5
11
7
4
12
13
1.82.7/c
1
1.82.7/04d
1.82.7/c
1.82.7/c
1.82.7/04d
1.82.7/04c
1.82.7/04d
2
1.82.7/f
13
5
home
1.82.7/e
6
12
12
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84266154

CONTROL VALVE

ASSY

1шт.

2

5195169

NUT,M8

3шт.

3

47131731

TIE-ROD,235mm L

3шт.

4

84230200

HYD VALVE SECTION

ASSY

1шт.

5

84230181

HYD VALVE SECTION

ASSY

3шт.

84230181R

REMAN-HYD VALVE

PUMA 125, PUMA 140, PUMA 155 all GARU (11/09-)

3шт.

84230181C

CORE-VALVE HYD

Return Number

1шт.

6

5191704

CHECK VALVE

Incl. 14

1шт.

7

87381964

QUICK MALE COUPLING

ASSY

1шт.

8

87381963

QUICK MALE COUPLING

ASSY

1шт.

9

87381958

QUICK MALE COUPLING

ASSY

1шт.

10

84175671

VALVE SECTION

ASSY

1шт.

84175671R

REMAN-HYD VALVE

PUMA 125, PUMA 140, PUMA 155 all GARU (11/09-)

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

87730706

CONTROL VALVE

ASSY

1шт.

87730706R

REMAN-HYD VALVE

PUMA 125, PUMA 140, PUMA 155 ALL TRACTOR - GARU ALL (11/09-)

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

6шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

6шт.

14

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.
