(1.82.7/04[01B]) - 3 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES (EHS1) - DISTRIBUTOR, COVER AND OIL COLLECTOR - D6788 (VAR.330856)

Запчасти Case IH PUMA 140 (1.82.7/04[01B]) - 3 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES (EHS1) - DISTRIBUTOR, COVER AND OIL COLLECTOR - D6788 (VAR.330856) (07) - HYDRAULIC SYSTEM

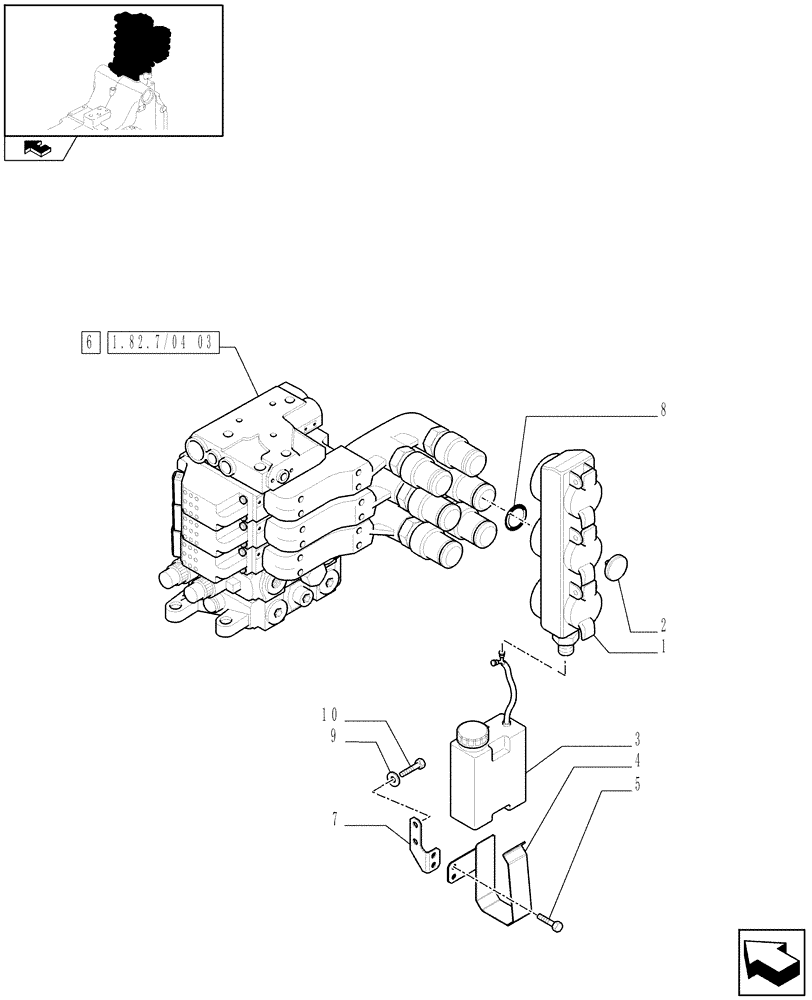

Схема запчастей Case IH PUMA 140 - (1.82.7/04[01B]) - 3 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES (EHS1) - DISTRIBUTOR, COVER AND OIL COLLECTOR - D6788 (VAR.330856) (07) - HYDRAULIC SYSTEM
6
10
1
1.82.7/04 03
home
5
3
9
8
7
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84290177

DUST CAP

Incl. 2, 8, Serial Range: -C7117

2шт.

1

84338823

DUST CAP

Incl. 2, 8, Start Serial: D7117

2шт.

2

82029895

DISC,20mm D, Black

Black

6шт.

3

84284864

RESERVOIR, HYDRAULIC

, Serial Range: -C7117

1шт.

3

84287277

RESERVOIR, HYDRAULIC

, Start Serial: D7117

1шт.

4

84312030

SUPPORT

1шт.

5

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

6

84266154

CONTROL VALVE

ASSY

1шт.

7

84311423

SUPPORT

1шт.

8

14454580

O-RING,34.65mm ID x 1.78mm

3шт.

9

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

10

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
