(1.82.7/04[01A]) - 3 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES (EHS1) - DISTRIBUTOR, COVER AND OIL COLLECTOR - D6690 - C6788 (VAR.330856)

Запчасти Case IH PUMA 140 (1.82.7/04[01A]) - 3 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES (EHS1) - DISTRIBUTOR, COVER AND OIL COLLECTOR - D6690 - C6788 (VAR.330856) (07) - HYDRAULIC SYSTEM

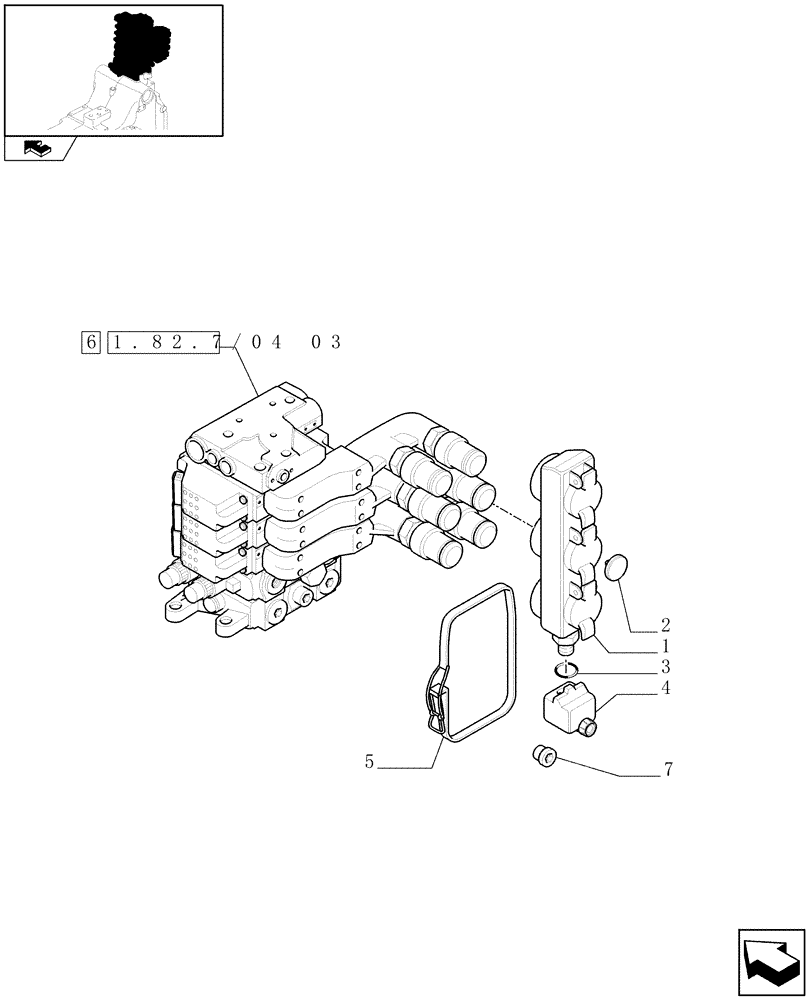

Схема запчастей Case IH PUMA 140 - (1.82.7/04[01A]) - 3 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES (EHS1) - DISTRIBUTOR, COVER AND OIL COLLECTOR - D6690 - C6788 (VAR.330856) (07) - HYDRAULIC SYSTEM
6
5
7
3
1.82.7/04 03
1
home
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87733576

DUST CAP

Incl. 2

2шт.

2

82029895

DISC,20mm D, Black

Black

6шт.

3

82029356

SEAL,20.00mm OD x 3.00mm

2шт.

4

84161329

BOTTLE

2шт.

5

82031973

SPRING CLIP

1шт.

6

84266154

CONTROL VALVE

ASSY

1шт.

7

82035752

PLASTIC PLUG,7.00mm, 11.00mm OD, 5.5mm D

4шт.
