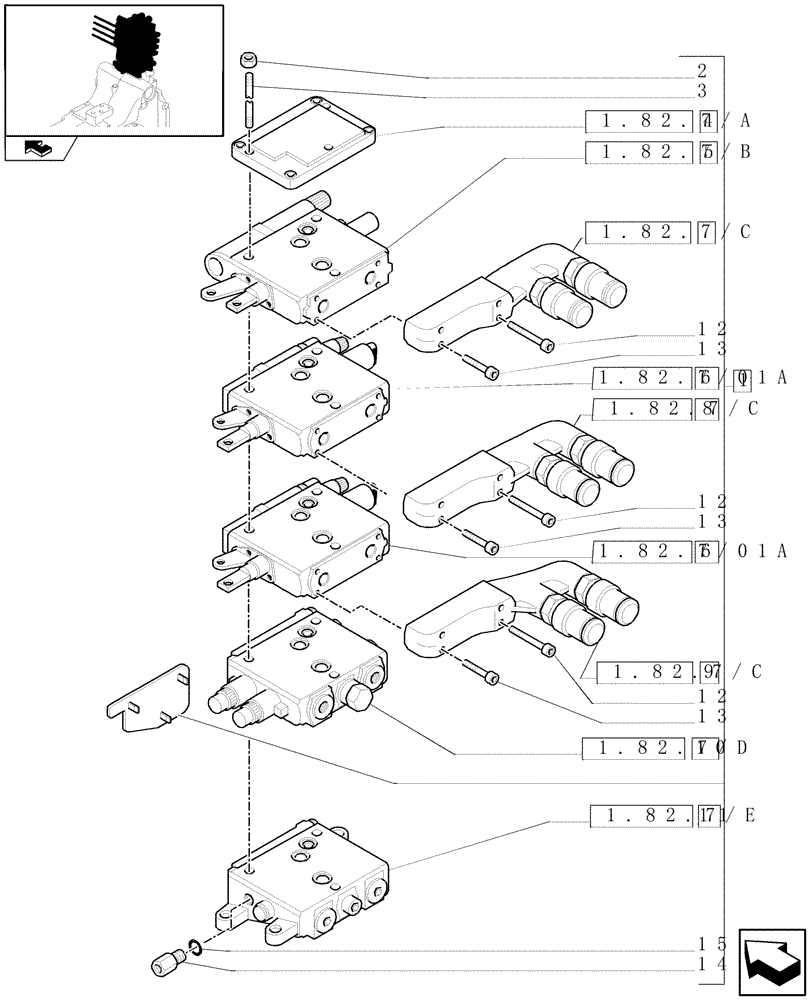

Запчасти Case IH PUMA 140 (1.82.7/02[02]) - 3 MECHANICAL REAR REMOTE CONTROL VALVES - VALVE SECTION AND QUICK COUPLERS (VAR.333844) (07) - HYDRAULIC SYSTEM

1

87311422

CONTROL VALVE

ASSY

1шт.

1 Not Configurable + 2 Configurable Control Valves

1шт.

2

5195169

NUT,M8

CL 10, M8 x 1.25

3шт.

3

47123183

STUD,M8

3шт.

4

5192188

BODY

ASSY

1шт.

5

87546169

CONTROL VALVE

ASSY

1шт.

87546169R

REMAN-HYD VALVE

PUMA 125, PUMA 140, PUMA 155 all TRACTOR - GARU (11/09-)

1шт.

87546169C

CORE-VALVE HYD

Return Number

1шт.

6

87328572

HYD VALVE SECTION

ASSY

2шт.

87328572R

REMAN-HYD VALVE

PUMA 125, PUMA 140, PUMA 155, ALL TRACTOR - GARU, (11/09-)

2шт.

87328572C

CORE-VALVE HYD

Return Number

1шт.

7

87381964

QUICK MALE COUPLING

ASSY

1шт.

8

87381963

QUICK MALE COUPLING

ASSY

1шт.

9

87381958

QUICK MALE COUPLING

ASSY

1шт.

10

87546170

CONTROL VALVE

ASSY

1шт.

84175671R

REMAN-HYD VALVE

PUMA 125, PUMA 140, PUMA 155 all TRACTOR - GARU (11/09-) Reman for New P/N 87546170

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

87730706

CONTROL VALVE

ASSY

1шт.

87730706R

REMAN-HYD VALVE

PUMA 125, PUMA 140, PUMA 155 ALL TRACTOR - GARU ALL (11/09-)

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

6шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

6шт.

14

5191704

CHECK VALVE

Incl. 15

1шт.

15

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.
