(1.82.7[02]) - 2 MECHANICAL REAR REMOTE CONTROL VALVES - VALVE SECTIONS AND QUICK COUPLERS

Запчасти Case IH PUMA 140 (1.82.7[02]) - 2 MECHANICAL REAR REMOTE CONTROL VALVES - VALVE SECTIONS AND QUICK COUPLERS (07) - HYDRAULIC SYSTEM

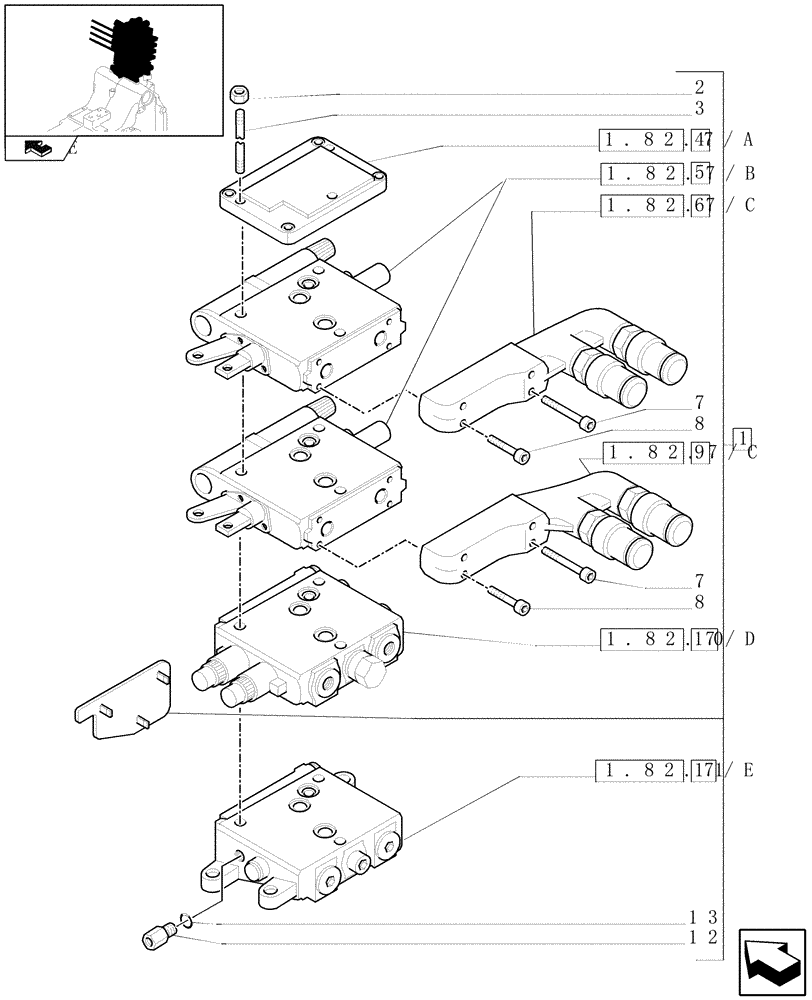

Схема запчастей Case IH PUMA 140 - (1.82.7[02]) - 2 MECHANICAL REAR REMOTE CONTROL VALVES - VALVE SECTIONS AND QUICK COUPLERS (07) - HYDRAULIC SYSTEM
7
6
1.82.7/d
8
2
1.82.7/e
home
1.82.7/c
1.82.7/b
1.82.7/a
1.82.7/c
1
11
12
7
3
8
13
9
4
5
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87546165

CONTROL VALVE

ASSY

1шт.

2

5195169

NUT,M8

CL 10, M8 x 1.25

3шт.

3

5195168

TIE-ROD,M8

3шт.

4

5192188

BODY

ASSY

1шт.

5

87546169

CONTROL VALVE

ASSY

2шт.

87546169R

REMAN-HYD VALVE

PUMA 125, PUMA 140, PUMA 155 all TRACTOR - GARU (11/09-)

2шт.

87546169C

CORE-VALVE HYD

Return Number

1шт.

6

87381963

QUICK MALE COUPLING

ASSY

1шт.

7

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

8

47129474

HEX SOC SCREW,M6 x 35mm

4шт.

9

87381958

QUICK MALE COUPLING

ASSY

1шт.

10

87546170

CONTROL VALVE

ASSY

1шт.

84175671R

REMAN-HYD VALVE

PUMA 125, PUMA 140, PUMA 155 all TRACTOR - GARU (11/09-) Reman for New P/N 87546170

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

87730706

CONTROL VALVE

ASSY

1шт.

87730706R

REMAN-HYD VALVE

PUMA 125, PUMA 140, PUMA 155 ALL TRACTOR - GARU ALL (11/09-)

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

12

5191704

CHECK VALVE

Incl. 13

1шт.

13

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.
