(1.82.1/01) - ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES - PILOT HOSE (VAR.330856-330862-338851)

Запчасти Case IH PUMA 140 (1.82.1/01) - ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES - PILOT HOSE (VAR.330856-330862-338851) (07) - HYDRAULIC SYSTEM

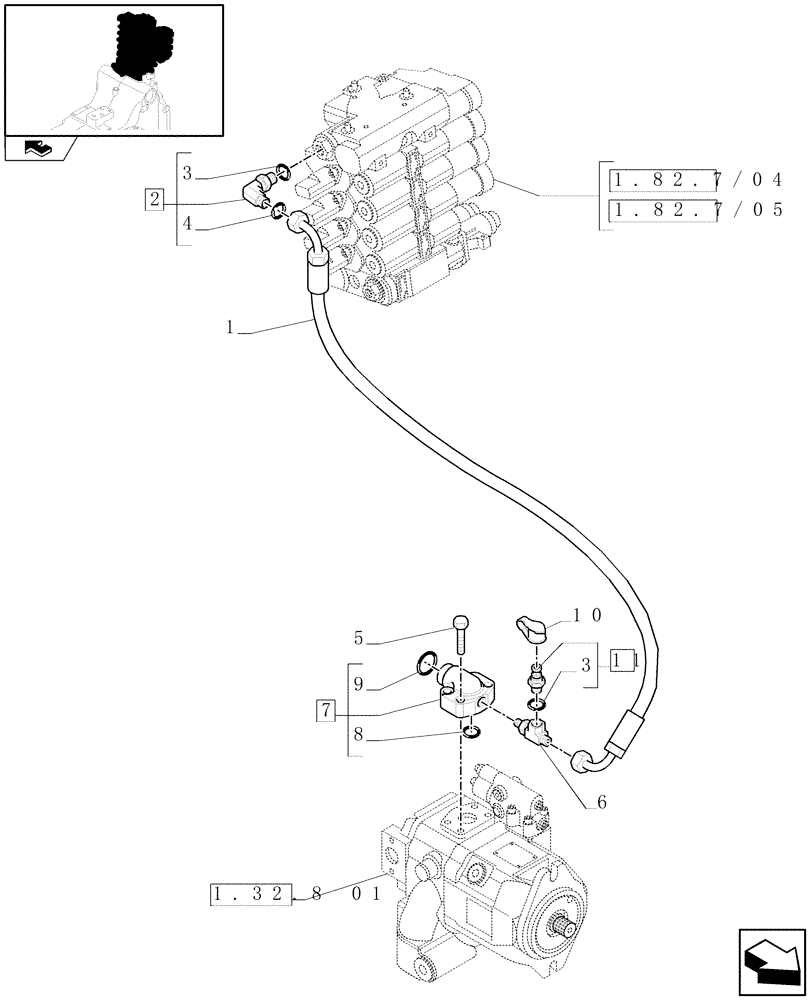

Схема запчастей Case IH PUMA 140 - (1.82.1/01) - ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES - PILOT HOSE (VAR.330856-330862-338851) (07) - HYDRAULIC SYSTEM
1.82.7/04 01
home
1.32.8 01
1.82.7/05 01
11
9
3
1
4
2
7
10
3
8
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84142634

FLEXIBLE HOSE

1шт.

2

5188442

HYD CONNECTOR,11/16-16 ORFS x M14 x 1.5 ORB

1шт.

3

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

4

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

5

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

6

87738179

TEE,11/16" - 16 ORFS x M14 x 1.5 ORB x M14 x 1.5 JIC

M14

1шт.

7

47130523

FLANGE

1шт.

8

14463781

O-RING,0.139" Thk x 1.296" ID, -219, Cl 7, 75 Duro

1шт.

9

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

10

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

1шт.

11

5185423

COUPLING

1шт.
