Запчасти Case IH PUMA 140 (1.82.1[01]) - LIFTER LINES - LOAD SENSING PIPE AND DELIVERY PUMP PIPE (07) - HYDRAULIC SYSTEM

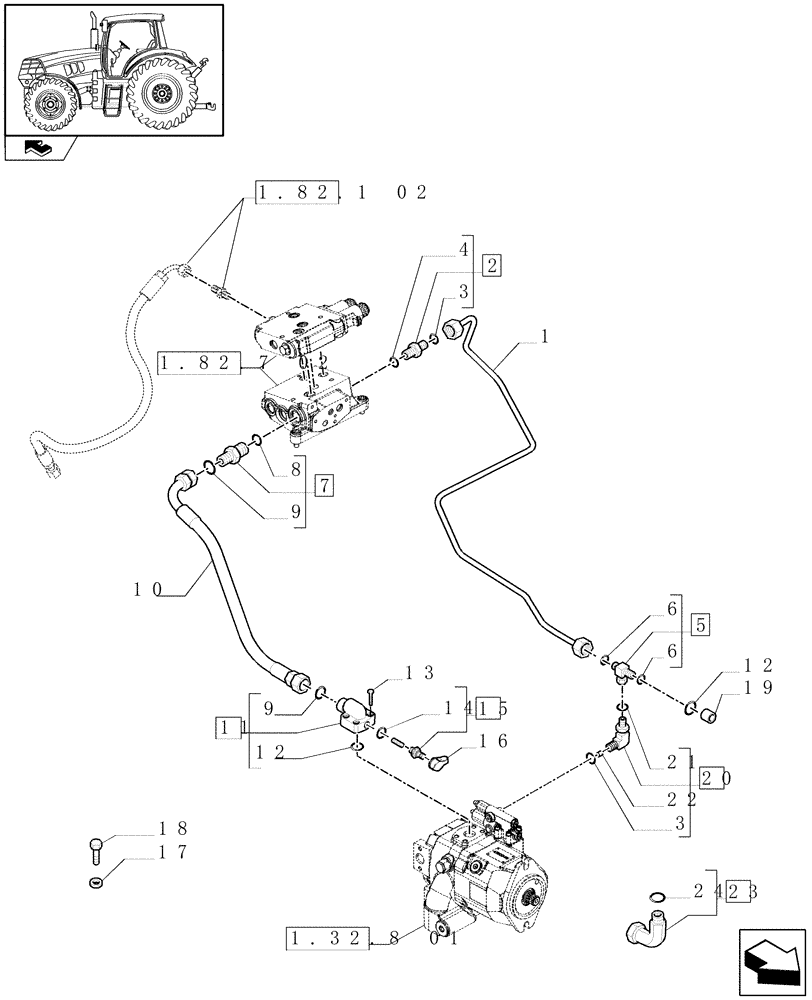

Схема запчастей Case IH PUMA 140 - (1.82.1[01]) - LIFTER LINES - LOAD SENSING PIPE AND DELIVERY PUMP PIPE (07) - HYDRAULIC SYSTEM
24
4
11
7
16
6
5
6
12
19
2
17
1.32.8 01
home
1.82.1 02
1.82.7 02
21
13
14
8
1
15
22
12
20
3
18
3
9
23
10
9

Артикул

Название

Примечание

Количество

1

87660996

PIPE

Load Sensing

1шт.

2

5185045

HYD CONNECTOR

1шт.

3

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

2шт.

4

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

5

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

6

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

7

5197215

HYD CONNECTOR,1"3/16-12 ORFS x M27 x 2 ORB

1шт.

8

14438185

O-RING,24mm ID x 3mm

1шт.

9

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

2шт.

10

87312959

FLEXIBLE HOSE,16mm ID x 540mm L, SAE 100R16

560MM, Delivery Pump

1шт.

11

47130523

FLANGE

1шт.

12

14463781

O-RING,0.139" Thk x 1.296" ID, -219, Cl 7, 75 Duro

2шт.

13

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

14

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

15

5185423

COUPLING

Incl. 14

1шт.

16

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

1шт.

17

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

18

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

19

47136652

PLUG,11/16"-16 ORFS

1шт.

20

47126659

ELBOW,90 Deg, 9/16-18 ORFS x 7/16-20 ORB

1шт.

21

5185507

O-RING,8.92mm ID x 1.83mm Width

1шт.

22

47126655

FILTER STRAINER

1шт.

23

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

1шт.

24

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Выбрано товаров: 24
