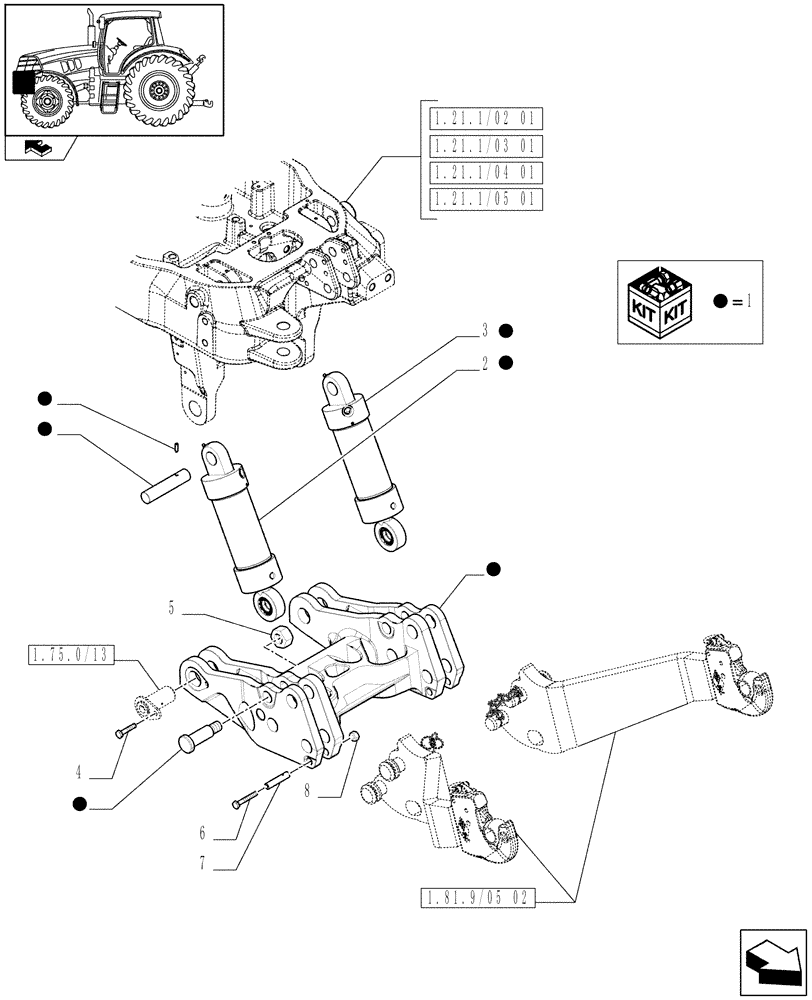

Запчасти Case IH PUMA 140 (1.81.9/05[01]) - INTEGRATED FRONT HPL - CYLINDERS AND SUPPORT - D6778 (VAR.333648-334648-335648-336831-337831) (07) - HYDRAULIC SYSTEM

1

87667283

FRAME

RGH

1шт.

2

87667287

LIFT CYLINDER

RH

1шт.

3

87667286

LIFT CYLINDER

LH

1шт.

4

10979221

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8

2шт.

5

12164521

NUT,Hex, M24, 2mm Pitch,19mm High, Cl 10

2шт.

6

15981621

BOLT,Hex, M16 x 1.5 x 100mm, Cl 8.8

2шт.

7

84278225

BUSHING,40mm ID x 44mm OD x 35mm L

2шт.

8

15504021

NUT,M16 x 1.5

2шт.
