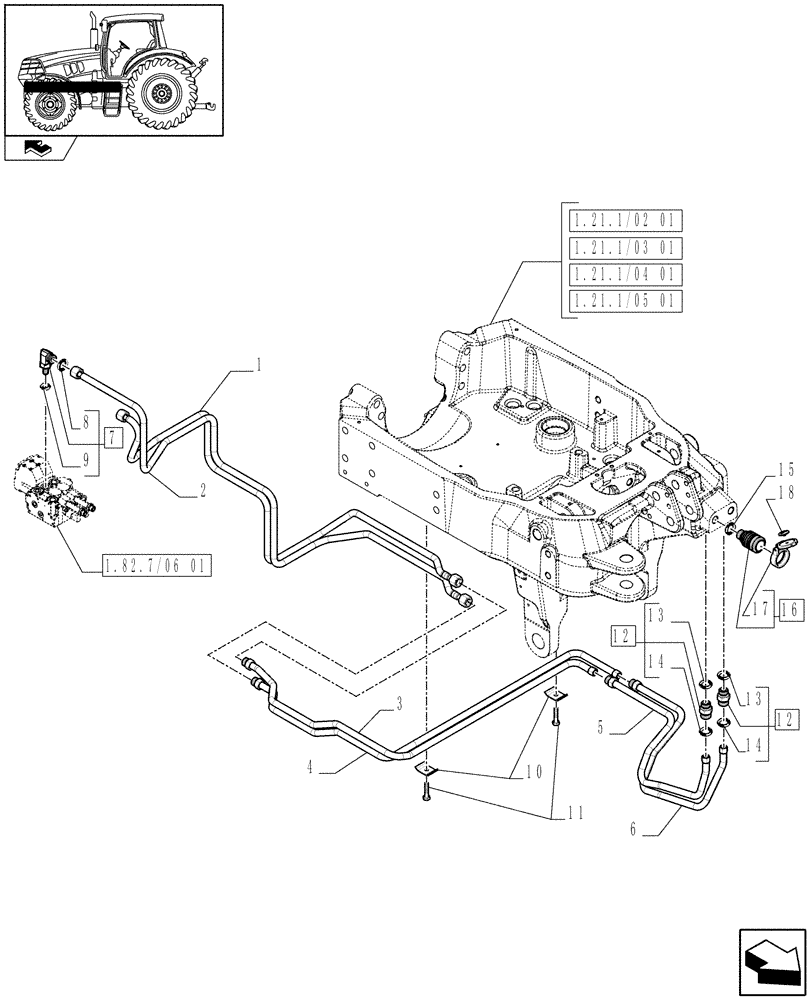

Запчасти Case IH PUMA 140 (1.81.9/04[01]) - 2 FRONT COUPLERS FOR INTEGRATED FRONT HPL FROM MID MOUNT VALVES - PIPES (VAR.332814) - C6989 (07) - HYDRAULIC SYSTEM

1

84150518

HYD TUBE,16 mm OD

Auxillary Coupler

1шт.

2

84150522

HYD TUBE

Auxillary Coupler

1шт.

3

84214785

HYD TUBE,16 mm OD x 1336 mm L

1 Aux. A Couplers LH, Serial Range: -C6778

1шт.

3

84288012

HYD TUBE,1336.50mm

1 Aux. A Couplers LH, Start Serial: D6778

1шт.

4

84214786

HYD TUBE,16.00mm OD x 1387.00mm

1 Aux. B Couplers LH

1шт.

5

84214787

HYD TUBE,16.00mm OD x 695.00mm

1шт.

6

84214788

HYD TUBE,16.00mm OD x 750.00mm

1шт.

7

82031421

90 ELBOW,13/16"-16 ORFS x M18 x 1.5 ORB

1шт.

8

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

9

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

10

47057074

CLAMP,48.6mm x 30mm

2шт.

11

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

12

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

2шт.

13

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

14

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

2шт.

15

11270860

SEAL,22.2mm ID x 26.9mm OD x 1.5mm Thk

2шт.

16

87301571

QUICK MALE COUPLING,M22 x 1.5

2шт.

17

47056253

CAP,59.5mm L x 46mm D x 19.4mm Thk, Black

2шт.

18

87731144

DISC,20mm D

1шт.

18

87731145

DISC,20mm D

1шт.
