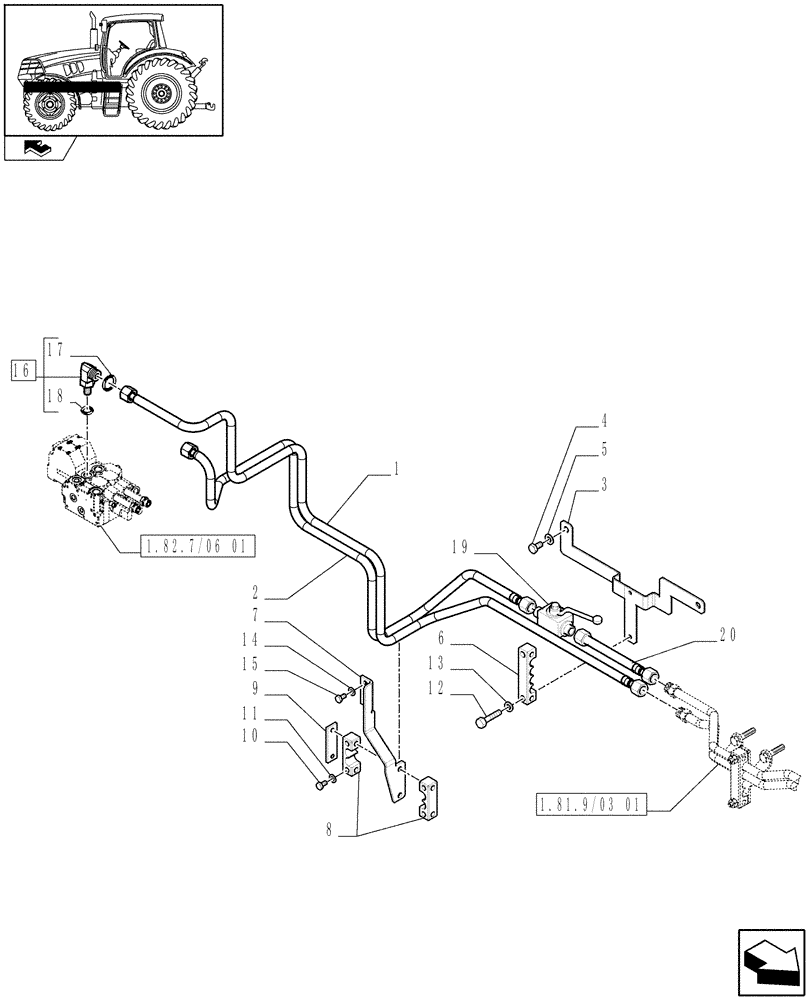

Запчасти Case IH PUMA 140 (1.81.9/03[02A]) - TUBES FOR FRONT HPL FROM MID MOUNT VALVES (VAR.332926) - D6989 (07) - HYDRAULIC SYSTEM

1

84150516

HYD TUBE,16 mm OD

Lower

1шт.

2

84338738

HYD TUBE

MMV - Ball Valve

1шт.

3

84150538

HOLDER

1шт.

3

84330708

HOLDER

1шт.

4

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

5

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

6

87579043

CLAMP,4 Hoses

1шт.

7

84135241

SUPPORT

1шт.

8

84147270

CLAMP,2 Hoses

2шт.

9

84147271

PLATE

1шт.

10

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

11

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

12

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

2шт.

12

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

13

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

13

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

14

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

15

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

2шт.

16

82031421

90 ELBOW,13/16"-16 ORFS x M18 x 1.5 ORB

1шт.

17

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

18

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

19

84177647

CHECK VALVE

Check FHPL

1шт.

20

84338735

HYD TUBE

Ball Valve - Int.

1шт.
