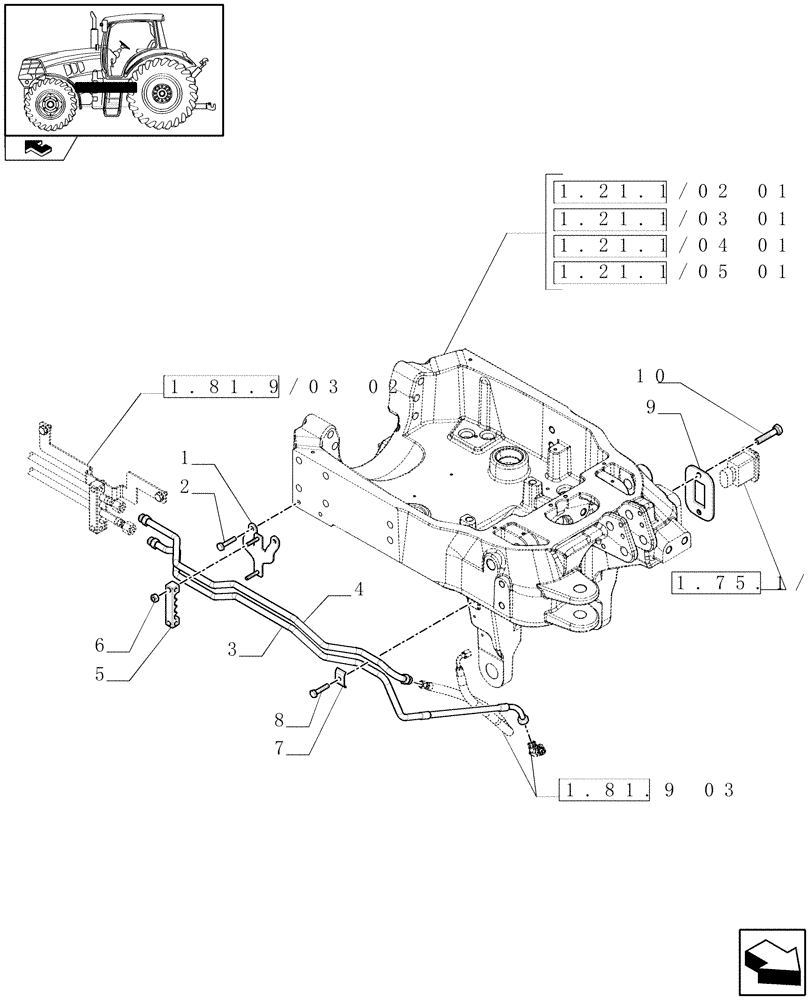

Запчасти Case IH PUMA 140 (1.81.9/03[01]) - TUBES FOR FRONT HPL FROM MID MOUNT VALVES - C6778 (VAR.332926) (07) - HYDRAULIC SYSTEM

1

84135228

SUPPORT

1шт.

2

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

3

84214782

PRESSURE PIPE

Lift

1шт.

4

84217401

PRESSURE PIPE

Lower

1шт.

5

87579043

CLAMP,4 Hoses

1шт.

6

16102111

NUT,M8 x 1.25, Cl 8, LH

2шт.

7

47057074

CLAMP,48.6mm x 30mm

1шт.

8

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

9

87643928

BRACKET

1шт.

10

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.
