(1.81.9/01[01A]) - TUBES FOR FRONT HPL FROM MECHANICAL REMOTE VALVES - D6778 (VAR.330926)

Запчасти Case IH PUMA 140 (1.81.9/01[01A]) - TUBES FOR FRONT HPL FROM MECHANICAL REMOTE VALVES - D6778 (VAR.330926) (07) - HYDRAULIC SYSTEM

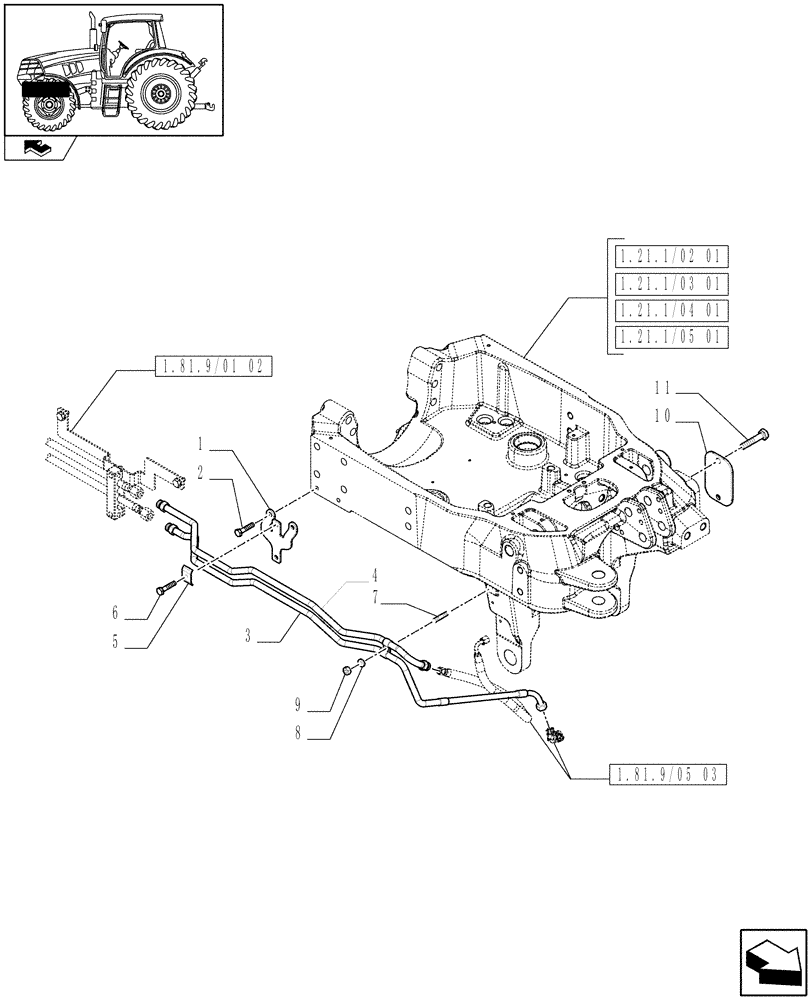

Схема запчастей Case IH PUMA 140 - (1.81.9/01[01A]) - TUBES FOR FRONT HPL FROM MECHANICAL REMOTE VALVES - D6778 (VAR.330926) (07) - HYDRAULIC SYSTEM
1.81.9/05 03
5
8
11
3
6
9
7
4
2
10
1
1.21.1/03 01
1.21.1/02 01
home
1.81.9/01 02
1.21.1/05 01
1.21.1/04 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84288055

BRACKET

1шт.

2

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

3

84289025

PRESSURE PIPE,1409.40mm

Lift

1шт.

4

84289024

PRESSURE PIPE,1126.50mm

Lower

1шт.

5

47057074

CLAMP,48.6mm x 30mm

1шт.

6

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

7

13517320

STUD,M8 x 1.25 x 35.00mm, Cl 8.8, PLN

1шт.

8

86639316

WASHER,8.4mm ID x 20mm OD x 2mm Thk

1шт.

9

43362

NUT,M8 x 1.25, Cl 10

1шт.

10

87643929

PLATE

1шт.

11

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.
