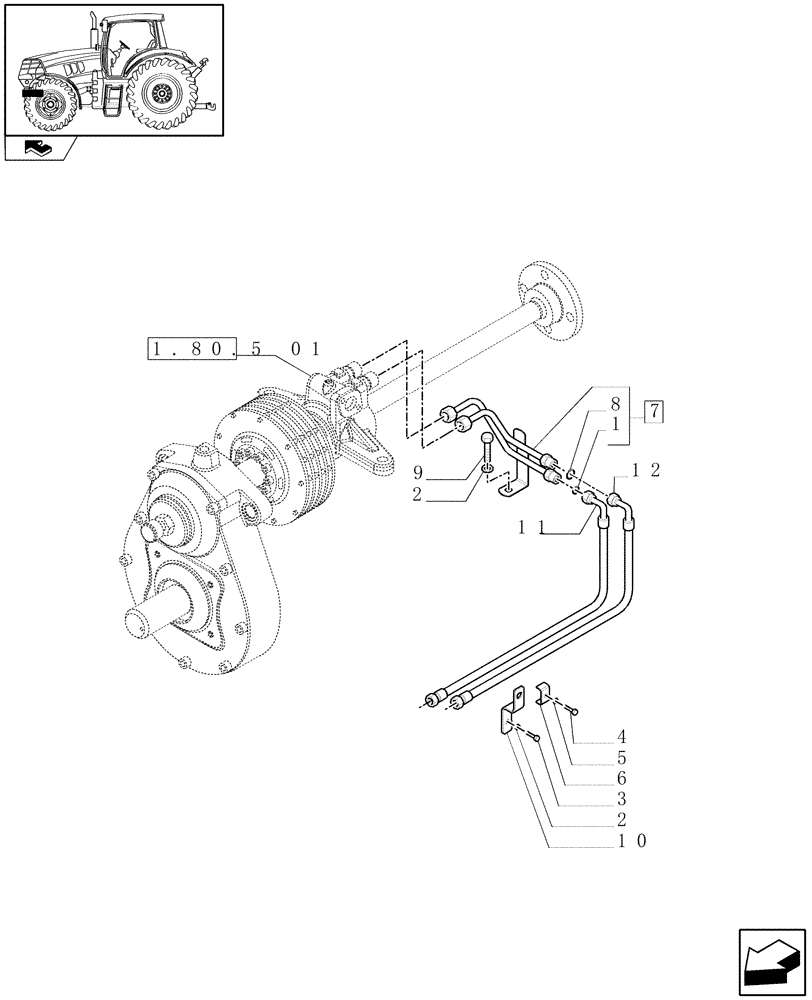

Запчасти Case IH PUMA 140 (1.80.5[03]) - INTEGRATED FRONT HPL WITH PTO - PIPES (VAR.333648-334648-335648) (07) - HYDRAULIC SYSTEM

1

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

2

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

3

10979224

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

2шт.

4

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

4шт.

5

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

4шт.

6

82034363

CLAMP

4шт.

7

87539241

PIPE

1шт.

8

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

1шт.

10

82034365

BRACKET

2шт.

11

87544004

HOSE

Feed

1шт.

12

87544003

HOSE

Return

1шт.
