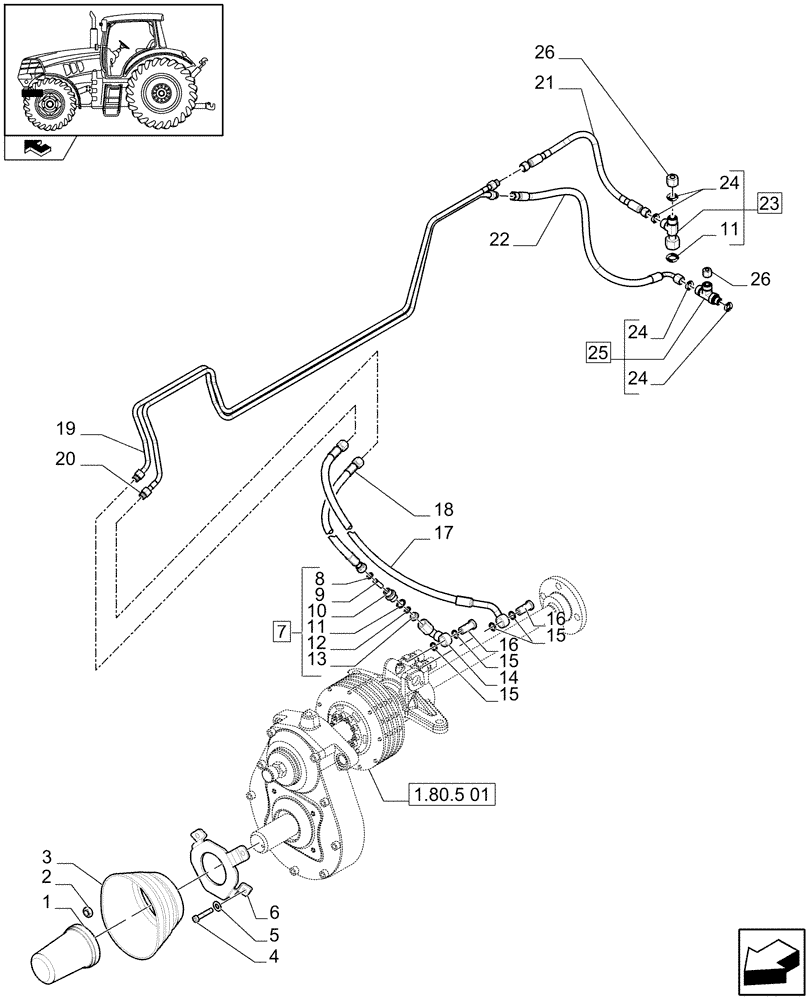

Запчасти Case IH PUMA 140 (1.80.5[02]) - INTEGRATED FRONT HPL WITH PTO - GUARDS AND PIPES (VAR.333648-334648-335648) (07) - HYDRAULIC SYSTEM

1

5165104

COVER

1шт.

2

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

3

47056296

GUARD

1шт.

4

14359224

HEX SOC SCREW,M8 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

5

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

6

47057580

COVER

1шт.

7

47127491

HYD CONNECTOR,M10 x 1 x 7.4mm L

1шт.

8

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

9

47126655

FILTER STRAINER

W/Filter

1шт.

10

47127489

HYD CONNECTOR,11/16"-16, M16 x 1.5

1шт.

11

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

12

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

13

47127332

ORIFICE,M10 x 1

1шт.

14

47057815

TUBE

1шт.

15

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

16 x 22 x 1.5

4шт.

16

10184411

BANJO BOLT,M16 x 1.5 x 31mm, R50

2шт.

17

87731125

HYDRAULIC HOSE,6.00mm ID x 550.00mm

700MM

1шт.

18

87731117

HYDRAULIC HOSE,6.00mm ID x 460.00mm

700MM

1шт.

19

87731115

PRESSURE PIPE,1528.50mm

, Serial Range: -C7142

1шт.

19

84428296

PRESSURE PIPE

, Start Serial: D7142

1шт.

20

87731114

PRESSURE PIPE,7/16"-20, 13/16"-16, 2000.00mm

, Serial Range: -C7142

1шт.

20

84428294

PRESSURE PIPE

, Start Serial: D7142

1шт.

21

87731126

HYDRAULIC HOSE,6.00mm ID x 470.00mm

1шт.

22

84185606

HOSE,6.00mm ID x 700.00mm

1шт.

23

87315465

HYD CONNECTOR,13/16"-16 ORFS x 13/16"-16 ORFS x M16 x 1.5 ORB

1шт.

24

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

4шт.

25

5194079

TEE

1шт.

26

47123020

PLUG,Hex

2шт.

27

85700613

CLAMP,1.75mm W x 0.20mm Thk

, Serial Range: -C7142

1шт.

28

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.
