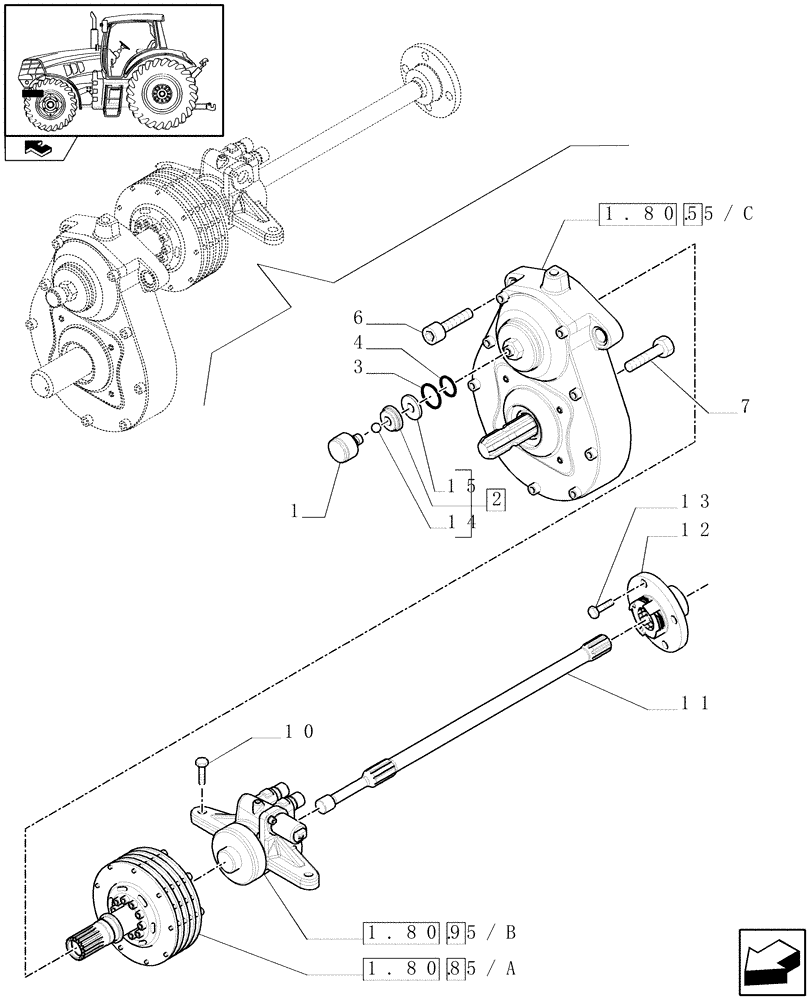

Запчасти Case IH PUMA 140 (1.80.5[01]) - INTEGRATED FRONT HPL WITH PTO - PTO, CLUTCH AND CYLINDER (VAR.333648-334648-335648) (07) - HYDRAULIC SYSTEM

1

47126759

BREATHER,M12 x 1.25

1шт.

2

47128748

PLUG

1шт.

3

11069276

SNAP RING,M48, Ext

1шт.

4

11059576

SNAP RING,M36, Int

1шт.

5

47127612

FRONT PTO ASSY

ASSY

1шт.

6

14429534

HEX SOC SCREW,M20 x 60mm, Cl 10.9

2шт.

7

15541121

SCREW,Hex, M12 x 1.25 x 65mm, Cl 8.8

1шт.

8

87731123

PTO CLUTCH

ASSY

1шт.

9

47057804

CYLINDER

ASSY

1шт.

10

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

2шт.

11

87731116

DRIVE SHAFT,694mm L

1шт.

12

47127689

HUB

1шт.

13

15215724

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

4шт.

14

20419380

BALL,12.7mm Dia

D=12.7

1шт.

15

14458280

O-RING,31.42mm ID x 2.62mm

1шт.
