Запчасти Case IH PUMA 140 (1.76.0/06) - AUTOGUIDANCE COMPLETION PACKAGE - GPS RECEIVER (VAR.330084) (06) - ELECTRICAL SYSTEMS

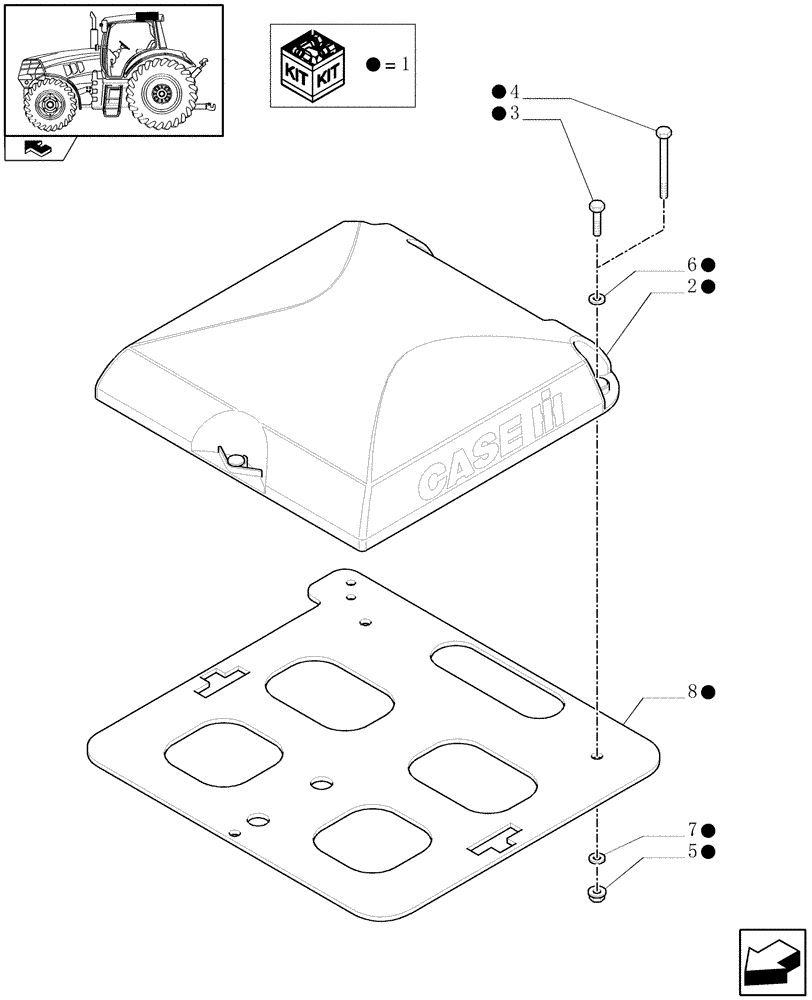

Схема запчастей Case IH PUMA 140 - (1.76.0/06) - AUTOGUIDANCE COMPLETION PACKAGE - GPS RECEIVER (VAR.330084) (06) - ELECTRICAL SYSTEMS
1
6
1
1
4
1
3
7
8
2
5
1
1
1
1
home
1

Артикул

Название

Примечание

Количество

1

87369143

KIT

, Serial Range: -C7181

1шт.

1

84588269R

REMAN ELECT CONTROL

PUMA 125, PUMA 140, PUMA 155, All TRACTOR - GARU, Serial Range: -C7181, (VAR.330084) (11/09-), Reman for New PN 87369143

1шт.

1

84588269C

CORE-ELECTRONIC CONT

Return Number

1шт.

1

84588269

AFS PARTS & PACKAGES

, Start Serial: D7181

1шт.

1

84588269R

REMAN ELECT CONTROL

PUMA 125, PUMA 140, PUMA 155, All TRACTOR - GARU, (VAR.330084), Start Serial: D7181 (11/09-)

1шт.

1

84588269C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

84148115

MODULE

, Serial Range: -C7181

1шт.

2

84574273R

REMAN ELECT CONTROL

PUMA 125, PUMA 140, PUMA 155, All TRACTOR - GARU, Serial Range: -C7181, VAR.330084 (11/09-), Reman for New 84148115

1шт.

2

84574273C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

84574273

GPS RECEIVER

, Start Serial: D7181

1шт.

2

84574273R

REMAN ELECT CONTROL

PUMA 125, PUMA 140, PUMA 155, All TRACTOR - GARU, Start Serial: D7181 (11/09-)

1шт.

2

84574273C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

3шт.

4

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

3шт.

5

86511444

FLANGE NUT,Hex, M6 x 1

3шт.

6

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

7

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

8

87496985

MOUNTING PLATE

1шт.

Выбрано товаров: 18
