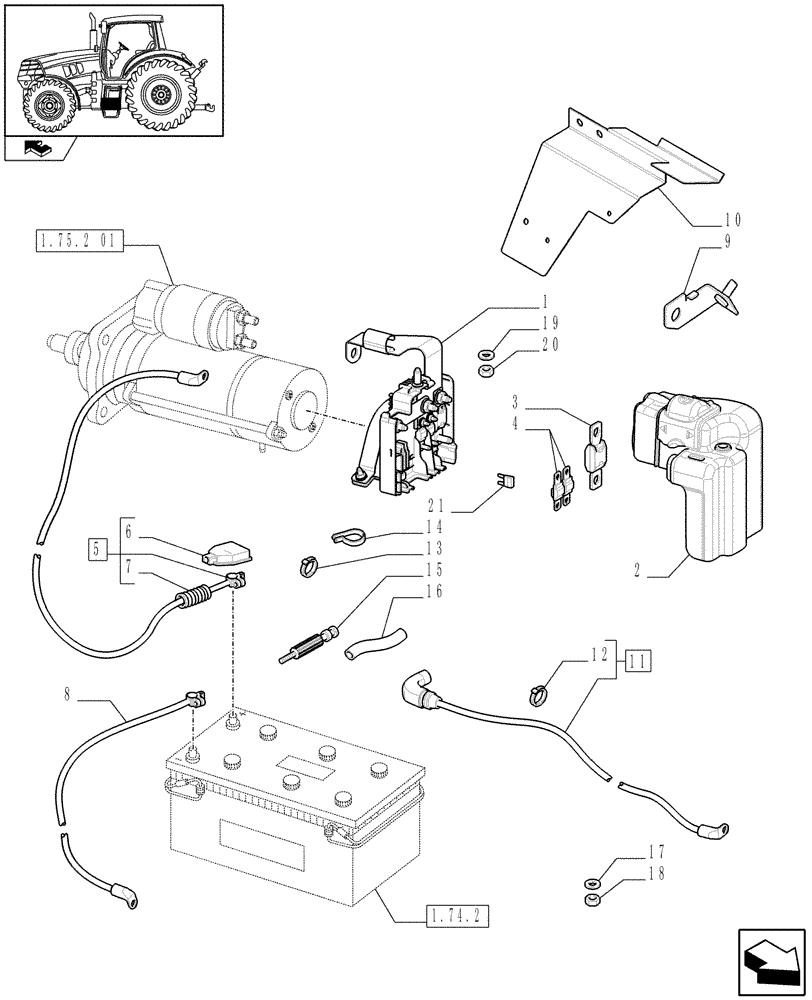

Запчасти Case IH PUMA 140 (1.75.3[01]) - BATTERY CABLES (06) - ELECTRICAL SYSTEMS

1

84396491

FUSE BOX

1шт.

2

84255327

COVER

1шт.

3

82033972

FUSE,250A

250A

1шт.

4

87390344

FUSE,30A, MIDIVAL

30A

2шт.

5

87487741

POS BATTERY CABLE

Positive, Serial Range: -C6988

1шт.

5

84350257

POS BATTERY CABLE

Positive, Start Serial: D6988

1шт.

6

81867524

PROTECTION CAP

Red

1шт.

7

82918747

SHIELD

1шт.

8

87487740

NEG BATTERY CABLE,1250mm L

POS BATTERY CABLE Negative

1шт.

9

87495257

SUPPORT

1шт.

10

84229307

SHIELD

1шт.

11

84251700

WIRE HARNESS

Cab to Engine Earth

1шт.

12

82013031

CABLE TIE,193mm L

CABLE STRAP

2шт.

13

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.

13

529070

CABLE TIE,368.3mm L

CABLE STRAP

3шт.

14

10441890

CLAMP,22mm, Coat, 7mm Bolt Hole, P Type

1шт.

15

82028966

TERMINAL CONNECTOR,M10 x 1.5, CL 8.8

1шт.

16

84178749

PROTECTIVE SLEEVE

1шт.

17

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

1шт.

18

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

19

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

19

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

20

80043416

NUT,M5

2шт.

20

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

20

43326

PIN

1шт.

21

10401290

FUSE,25 amp Mini

25A

1шт.
