Запчасти Case IH PUMA 140 (1.75.1/04) - COMMAND ARM WITH SLIP CONTROL (RADAR) - CONTROLS (VAR.332021-332023-332024-332026) (06) - ELECTRICAL SYSTEMS

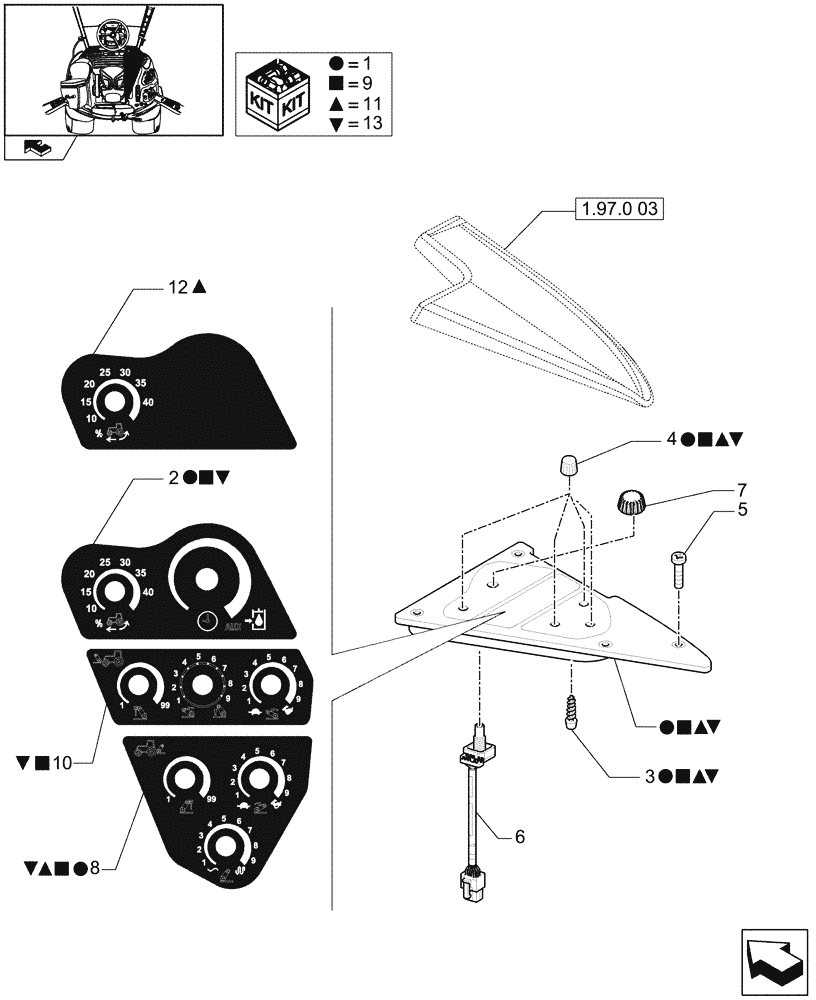

Схема запчастей Case IH PUMA 140 - (1.75.1/04) - COMMAND ARM WITH SLIP CONTROL (RADAR) - CONTROLS (VAR.332021-332023-332024-332026) (06) - ELECTRICAL SYSTEMS
11
5
12
11
9
13
13
11
13
9
1
13
9
9
1
9
13
1.97.0 03
4
home
13
9
1
9
11
8
6
13
11
13
3
11
1
2
1
9
11
1
1
7
10

Артикул

Название

Примечание

Количество

1

84168654

ELECTRIC PANEL

1шт.

Command Arm for Electrohydr. Remotes with Slip Control (Radar), VAR.332023

1шт.

Command Arm for Mech. Remotes with Slip Control (Radar) for Mid Mount Valves VAR.332026

1шт.

2

84217909

DECAL

1шт.

3

82018700

SCREW,Phillips Drive, Round HD, M2.5 x 10mm

2.5 x 10

1шт.

Q.ty=3 for VAR.332023-332021-332026; Q.ty=4 for VAR.332024.

1шт.

4

82012988

KNOB

1шт.

Q.ty=4 for VAR.332023-332021-332026; Q.ty=7 for VAR.332024.

1шт.

5

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4.8 x 16

4шт.

6

87755846

POTENTIOMETER,5V, 30mA, 150mW

1шт.

Command Arm for Electrohydr. Remotes for Front Hitch Management with Slip Control (Radar), VAR.332024

1шт.

Command Arm for Electrohydr. Remotes with Slip Control (Radar), VAR.332023

1шт.

7

87454709

KNOB

1шт.

Command Arm for Electrohydr. Remotes for Front Hitch Management with Slip Control (Radar), VAR.332024

1шт.

Command Arm for Electrohydr. Remotes with Slip Control (Radar), VAR.332023

1шт.

8

84217912

DECAL

1шт.

9

84168658

ELECTRIC PANEL

, Serial Range: -C7202

1шт.

Command Arm for Electrohydr. Remotes for Front Hitch Management with Slip Control (Radar), VAR.332024

1шт.

St.Valentin Production only

1шт.

10

84217908

DECAL

1шт.

Command Arm for Electrohydr. Remotes for Front Hitch Management with Slip Control (Radar), VAR.332024

1шт.

St.Valentin Production only

1шт.

11

84168656

ELECTRIC PANEL

1шт.

Command Arm for Mech. Remotes with Slip Control (Radar), VAR.332021

1шт.

12

84217910

DECAL

1шт.

Command Arm for Mech. Remotes with Slip Control (Radar), VAR.332021

1шт.

13

84394113

ELECTRIC PANEL

, Start Serial: D7202

1шт.

Command Arm for Electrohydr. Remotes for Front Hitch Management with Slip Control (Radar), VAR.332024

1шт.

St.Valentin Production only

1шт.

Выбрано товаров: 29
