Запчасти Case IH PUMA 140 (1.75.1[05]) - SHUTTLE, WASH WIPE AND HEADLIGHT LEVERS (06) - ELECTRICAL SYSTEMS

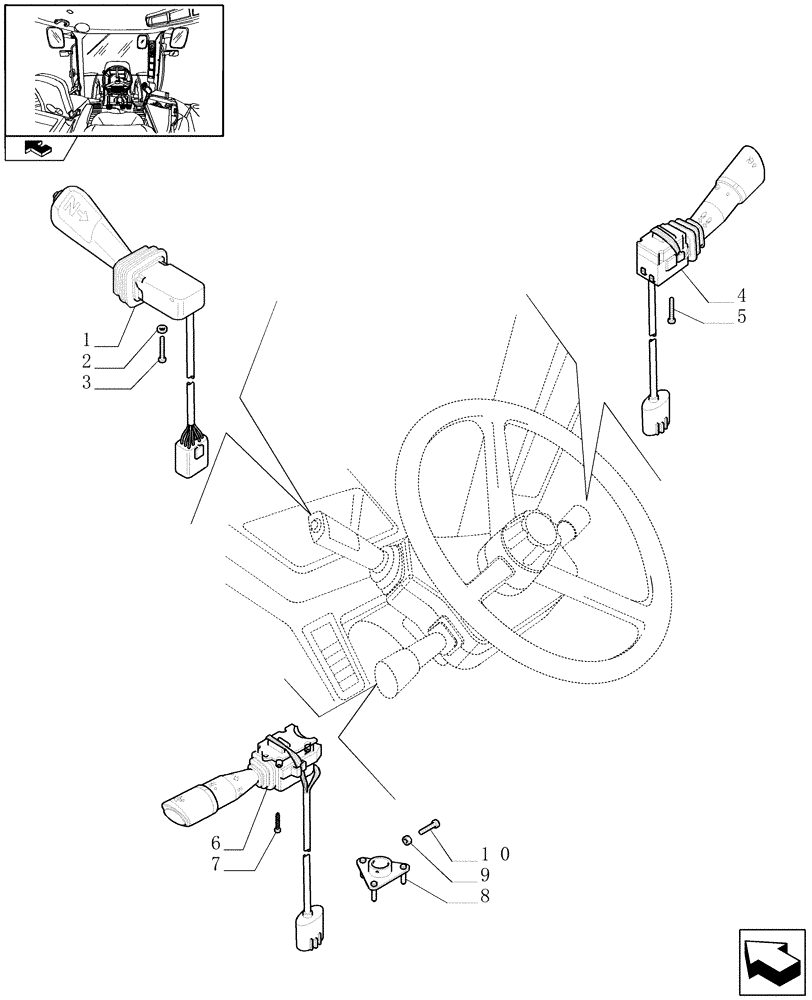

Схема запчастей Case IH PUMA 140 - (1.75.1[05]) - SHUTTLE, WASH WIPE AND HEADLIGHT LEVERS (06) - ELECTRICAL SYSTEMS
3
2
5
10
1
home
4
7
9
6
8

Артикул

Название

Примечание

Количество

1

87472289

LEVER

Shuttle

1шт.

1

87471629

LEVER

1шт.

Electronic Park Lock, VAR.330083-331083

1шт.

2

10615279

LOCK WASHER,M4, Serr

D=4

3шт.

3

82880809

SCREW,Pan, M4 x 8mm, Gr 4.8

M4 x 8

3шт.

4

87733125

SWITCH ASSY

Wash Wipe, Serial Range: -C6842

1шт.

4

84288425

SWITCH

Wash Wipe, Start Serial: D6842

1шт.

5

83912337

SELF-TAP SCREW,3.5mm OD x 1.3mm Thd x 22mm L

M6 x 22

3шт.

6

87490159

SWITCH ASSY

Head Light

1шт.

6

87733123

SWITCH ASSY

Self Cancelling

1шт.

Self Cancelling Turn Indicators, VAR.330930

1шт.

7

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

M6 x 13

3шт.

8

87678850

ACTUATOR

1шт.

Self Cancelling Turn Indicators, VAR.330930

1шт.

9

10794011

NUT,M4, Cl 8

3шт.

Self Cancelling Turn Indicators, VAR.330930

1шт.

10

83949904

SCREW,Pan, M4 x 10mm, Gr 4.8

M4 x 8

3шт.

Self Cancelling Turn Indicators, VAR.330930

1шт.

Выбрано товаров: 18
