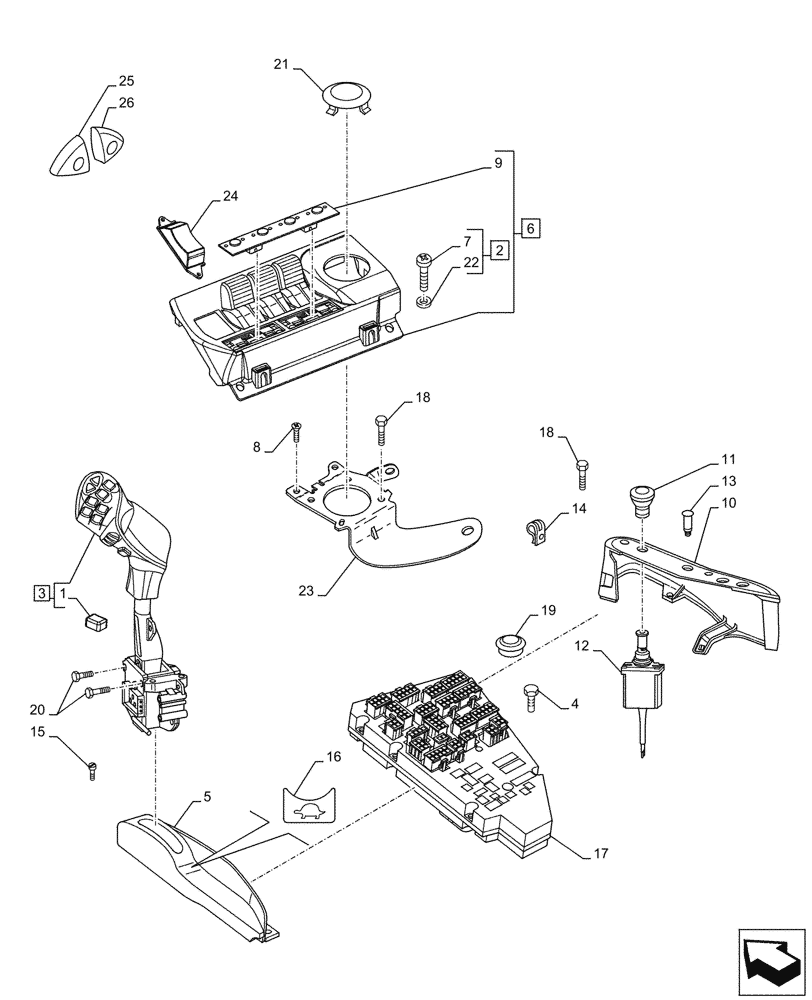

Запчасти Case IH PUMA 140 (1.75.1[01]) - ARMREST CONTROL UNIT - ELECTRONIC CONTROLS AND ELECTRONIC CONTROL UNIT (06) - ELECTRICAL SYSTEMS

1

84238354

CAP

1шт.

2

84228894

KIT

1шт.

3

84209526

LEVER

1шт.

84209526R

REMAN-JOYSTICK

PUMA 125, PUMA 140, PUMA 155 all TRACTOR - GARU (11/09-)

1шт.

84209526C

CORE-JOYSTICK

Return Number

1шт.

4

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

11шт.

5

84122981

BEZEL

1шт.

6

84202317

TOGGLE SWITCH

ASSY, Incl 24

1шт.

3 Electrohydraulic Rear Remote Control Valves, VAR.330856

1шт.

for 8 Pin Connector order PN 87714276 (Qty 2), for 10 Pin Connector order PN 87694703 (Qty 2)

1шт.

6

84202321

TOGGLE SWITCH

ASSY

1шт.

4 Electrohydraulic Rear Remote Control Valves, VAR.330862-338851

1шт.

for 8 Pin Connector order PN 87714276 (Qty 2), for 10 Pin Connector order PN 87694703 (Qty 2)

1шт.

7

50631

SCREW,Self Tapping, M6 x 0.5" OAL

12шт.

8

15687901

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 9.50mm

2шт.

9

87613728

PANEL

1шт.

10

84216544

HOUSING

1шт.

11

87638633

KNOB

Yellow

2шт.

Q.ty=1 for Std equipment; Q.ty=2 for Integrated Front HPL with PTO (6 spline), VAR.333648-334648-335648

1шт.

12

84218194

SWITCH ASSY

2шт.

Q.ty=1 for Std equipment; Q.ty=2 for Integrated Front HPL with PTO (6 spline), VAR.333648-334648-335648

1шт.

13

47056319

WARNING LIGHT

Yellow

2шт.

Q.ty=1 for Std equipment; Q.ty=2 for Integrated Front HPL with PTO (6 spline), VAR.333648-334648-335648

1шт.

14

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

14шт.

15

86599775

SCREW,M3 x 0.5 x 14.4mm OAL, Cl 4.8

5шт.

16

84145169

DECAL

1шт.

17

84209240

MODULE

Armrest Control Module, Serial Range: -C6918

1шт.

17

47443335R

REMAN ELECT CONTROL

PUMA 125, PUMA 140, PUMA 155, All TRACTOR - GARU, Armrest Control Module, Serial Range: -C6918 (11/09-)

1шт.

17

47443335C

CORE-ELECTRONIC CONT

Return Number

1шт.

17

84356314

MODULE

Armrest Control Module, Start Serial: D6918

1шт.

17

47443335R

REMAN ELECT CONTROL

PUMA 125, PUMA 140, PUMA 155, All TRACTOR - GARU, Armrest Control Module, Start Serial: D6918 (11/09-)

1шт.

17

47443335C

CORE-ELECTRONIC CONT

Return Number

1шт.

18

10589928

SCREW,Flat Hd, M6 x 20.2mm OAL 10mm Collar

4шт.

19

81862738

PLUG,M38 x 28 x 5mm

4шт.

20

13276621

SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 8.8, Full Thd

4шт.

21

87725444

BLANK-OFF PLUG,57.5mm OD, Black

1шт.

Less Joystick

1шт.

22

495-81251

WASHER,0.16" ID x 0.31" OD x 0.04" Thk

12шт.

23

84150720

HOLDER

1шт.

24

84226110

PLUG,32.5mm W x 92mm L

1шт.

3 Electrohydraulic Rear Remote Control Valves, VAR.330856

1шт.

25

84202341

KNOB

Throttle, LH

1шт.

26

84229449

KNOB

Throttle, RH

1шт.
