Запчасти Case IH PUMA 140 (1.75.0/03[01]) - (220V) ENGINE BLOCK AND TRANSMISSION OIL HEATERS - C7114 (VAR.330206) (06) - ELECTRICAL SYSTEMS

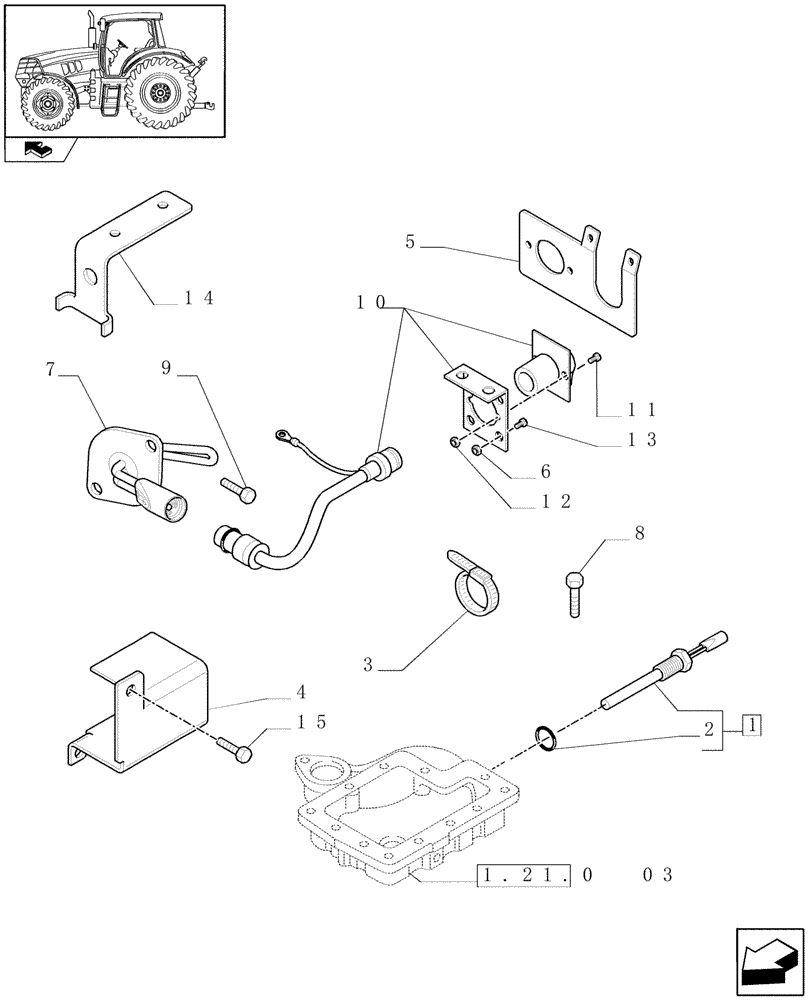

Схема запчастей Case IH PUMA 140 - (1.75.0/03[01]) - (220V) ENGINE BLOCK AND TRANSMISSION OIL HEATERS - C7114 (VAR.330206) (06) - ELECTRICAL SYSTEMS
2
12
4
14
13
15
1.21.0 03
5
home
3
9
6
10
1
11
8
7

Артикул

Название

Примечание

Количество

1

82030789

HEATER,240V

Trasmission Oil, 240V

1шт.

2

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

116W

1шт.

3

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

2шт.

4

87712833

GUARD

1шт.

5

87315478

BRACKET

1шт.

6

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

7

87756078

HEATER,240V

240V

1шт.

8

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

1шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

10

87756875

ELECTRIC CABLE

2шт.

11

13271914

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

4шт.

12

10794011

NUT,M4, Cl 8

4шт.

13

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

2шт.

14

87633005

BRACKET

1шт.

15

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 15
