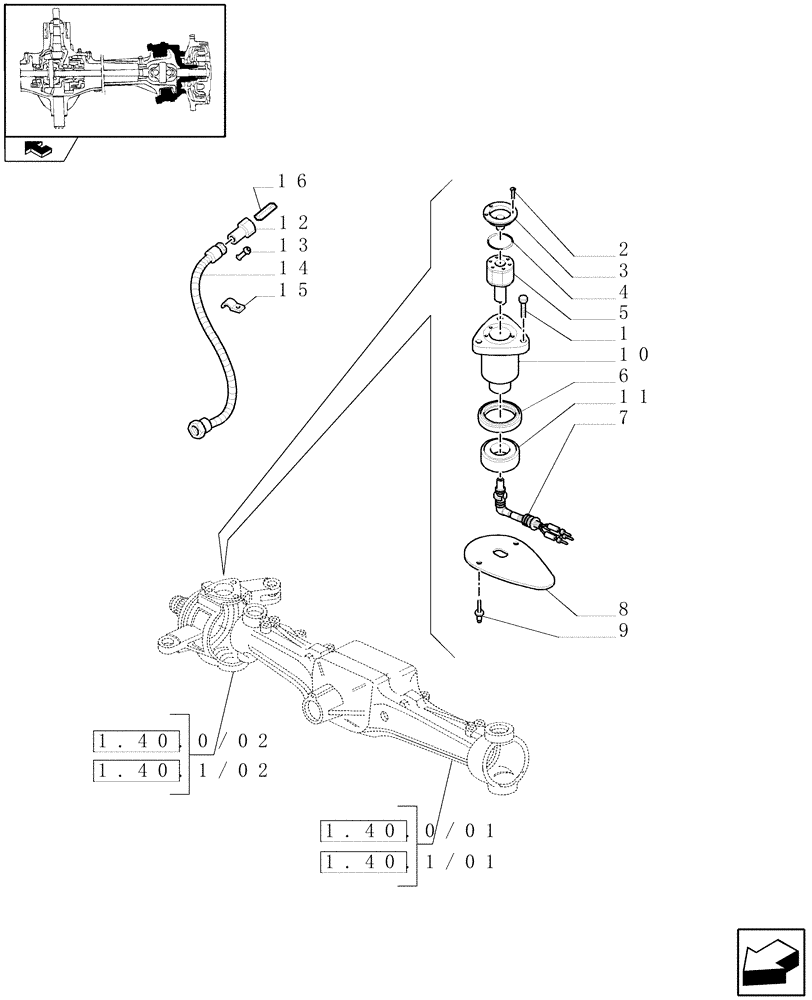

Запчасти Case IH PUMA 140 (1.75.0[03]) - FRONT AXLE WITH STEERING SENSOR - SENSOR AND RELATED PARTS (06) - ELECTRICAL SYSTEMS

1

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

2

13299218

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

3шт.

3

84384510

TOP

1шт.

4

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

5

87627614

SENSOR

Steering

1шт.

6

47137702

SEAL,56mm ID x 70mm OD x 10mm Thk

1шт.

7

87627623

ELEC CONNECTOR,Male

1шт.

7

87616286

ELEC CONNECTOR

HARNESS

1шт.

Suspended Front Axle with Steering Sensor, VAR.330414-330427

1шт.

8

87315098

SHIELD

1шт.

9

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

2шт.

10

87382577

BALL STUD

BALL PIN

1шт.

11

47137677

SPH ROLLER BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

1шт.

12

82918426

ELEC CONNECTOR,Female

1шт.

13

82918419

PLUG

1шт.

14

87658190

FLEXIBLE SHEATH

1шт.

15

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

16

82918451

SPACER

1шт.
