(1.68.6[09]) - PNEUMATIC TRAILER BRAKE (UNIVERSAL) - QUICK HITCH AND PIPES (VAR.332727)

Запчасти Case IH PUMA 140 (1.68.6[09]) - PNEUMATIC TRAILER BRAKE (UNIVERSAL) - QUICK HITCH AND PIPES (VAR.332727) (05) - REAR AXLE

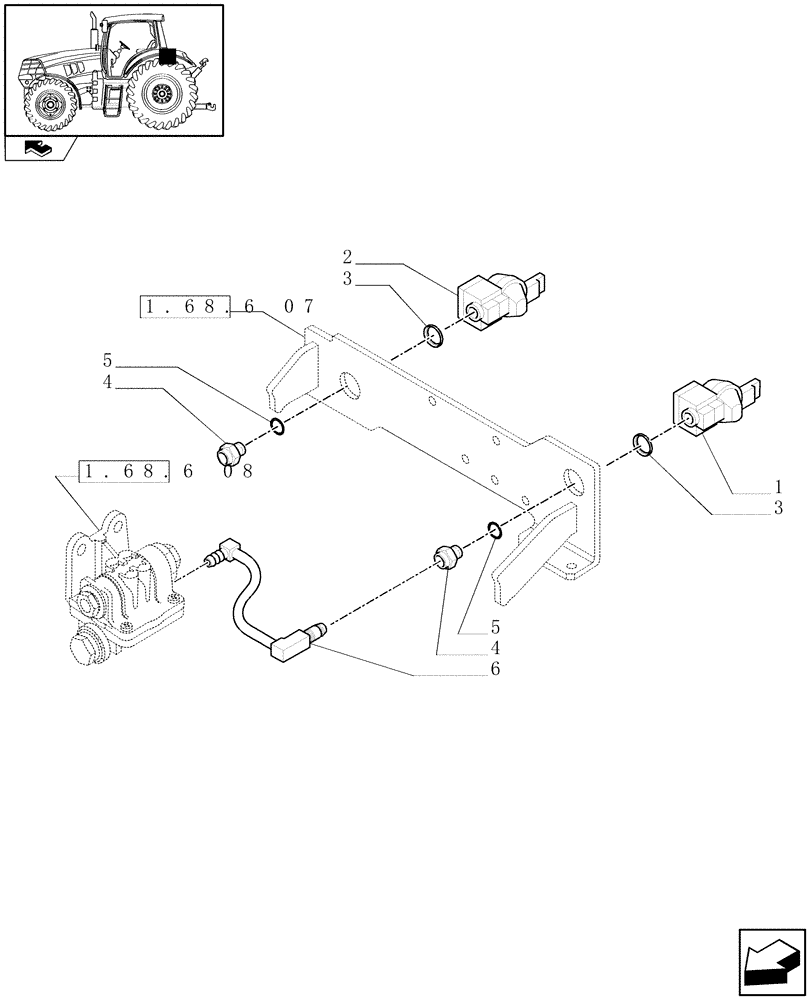

Схема запчастей Case IH PUMA 140 - (1.68.6[09]) - PNEUMATIC TRAILER BRAKE (UNIVERSAL) - QUICK HITCH AND PIPES (VAR.332727) (05) - REAR AXLE
4
2
1
5
3
1.68.6 07
home
1.68.6 08
3
4
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82001020

COUPLING

Yellow

1шт.

2

82001019

COUPLING

Red

1шт.

3

87678124

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

M16

2шт.

4

87678128

ADAPTER

M16

2шт.

5

87678125

O-RING,2mm Thk x 14mm ID, 70 Duro

2шт.

6

84157670

FLEXIBLE HOSE,12mm ID x 164mm, MAT 3012

Yellow

1шт.

Выбрано товаров: 6
