(1.68.6[02]) - PNEUMATIC TRAILER BRAKE - PULLEYS AND BELT (VAR.332727-332737-332739)

Запчасти Case IH PUMA 140 (1.68.6[02]) - PNEUMATIC TRAILER BRAKE - PULLEYS AND BELT (VAR.332727-332737-332739) (05) - REAR AXLE

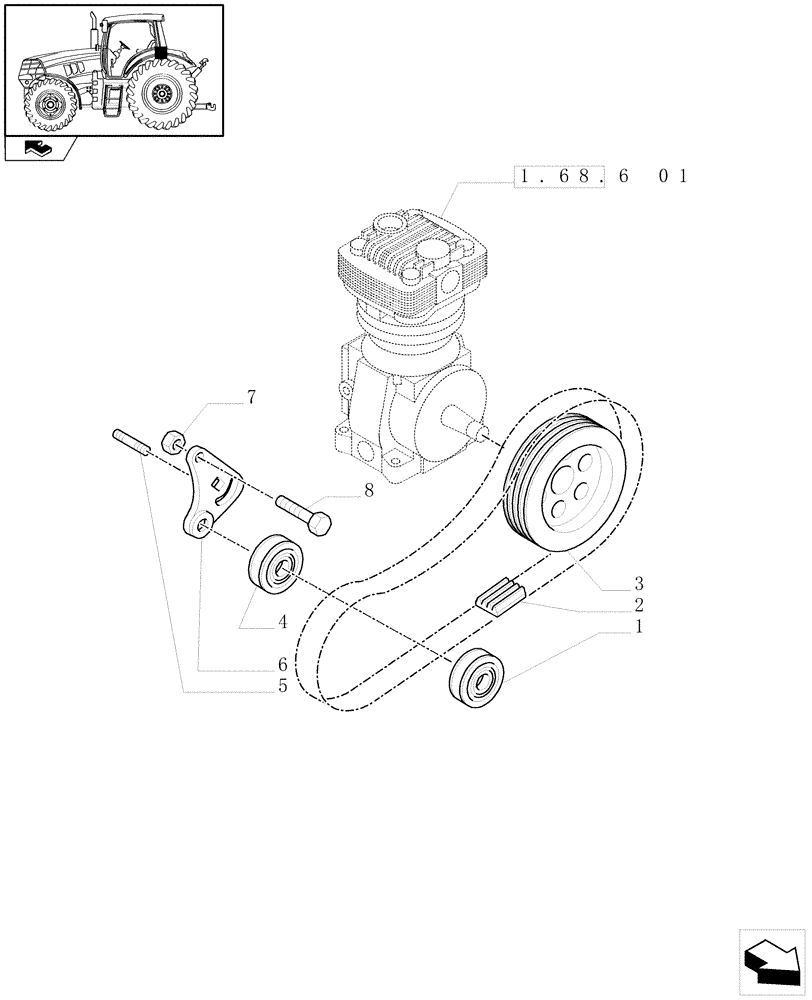

Схема запчастей Case IH PUMA 140 - (1.68.6[02]) - PNEUMATIC TRAILER BRAKE - PULLEYS AND BELT (VAR.332727-332737-332739) (05) - REAR AXLE
8
2
6
5
3
1
1.68.6 01
home
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87803016

IDLER,57mm OD

RIBBED

1шт.

2

87710660

V-BELT,14.04mm W x 1083.00mm L, 4 Ribs

1шт.

3

82036658

PULLEY

1шт.

4

87803017

IDLER,65mm OD

SMOOTH

1шт.

5

4899402

STUD,M10 x 1.5 x 45.00mm

1шт.

6

87802642

BRACKET

1шт.

7

4895166

FLANGE NUT,M10, 1.50mm Pitch, Cl 10

M10 x 1.5

1шт.

8

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

1шт.

Выбрано товаров: 8
