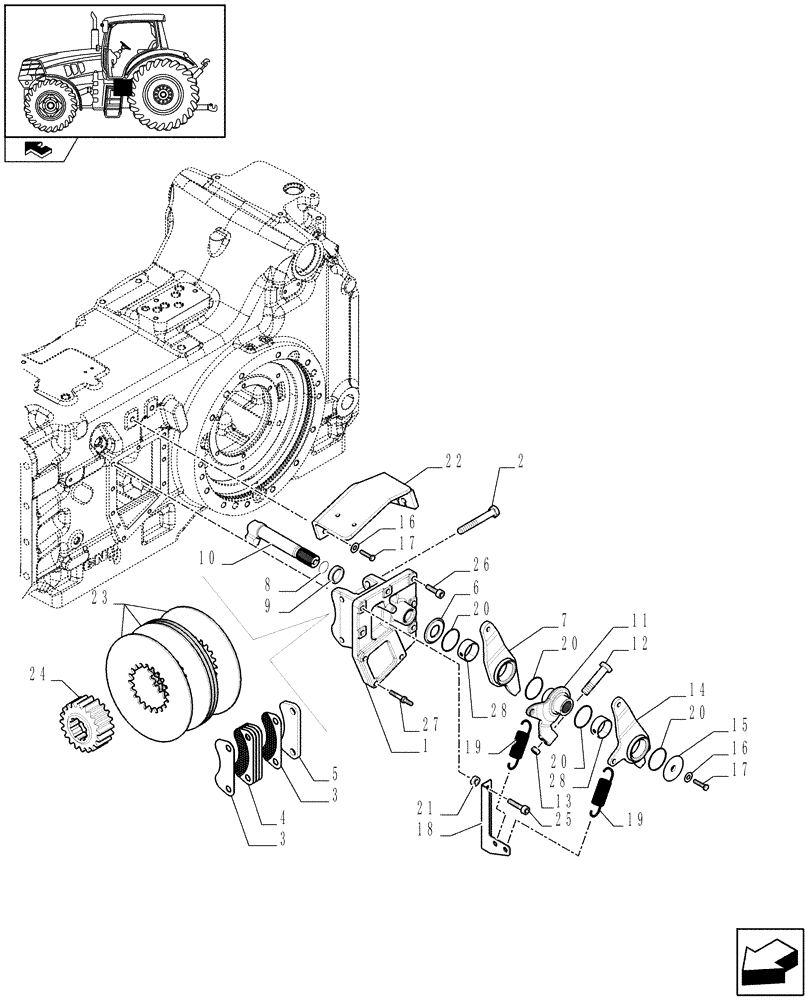

Запчасти Case IH PUMA 140 (1.65.5/01[01A]) - ELECTRONIC PARK LOCK - PARKING BRAKE - D6834 (VAR.330083-331083) (05) - REAR AXLE

1

84272658

SUPPORT

1шт.

2

84168003

SET SCREW,M14 x 1.5 x 1.5mm, Class 8.8

2шт.

3

5199607

BRAKE PAD,3.1mm Thk

2шт.

4

5199788

BRAKE PAD,4.2mm Thk

4шт.

5

47127226

BRAKE PAD,9mm Thk

1шт.

6

87689269

SHIM,28mm ID x 59mm OD x 3.7mm Thk

1шт.

7

87689320

BRAKE LEVER

EPL lever, Incl.28

1шт.

8

14458080

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

1шт.

9

5198146

SHIM,28.1mm ID x 31.9mm OD x 4mm Thk

1шт.

10

87740212

LEVER

1шт.

11

87689271

HUB

1шт.

12

87741803

SET SCREW,Hex, M16 x 1.25 x 70mm

1шт.

13

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

1шт.

14

87689319

BRAKE LEVER

Incl.28

1шт.

15

87689270

SHIM,12.5mm ID x 59mm OD x 6.7mm Thk

1шт.

16

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

3шт.

17

15540421

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

18

87751900

SUPPORT

1шт.

19

84484950

SPRING

EXTENSION

2шт.

20

14455080

O-RING,50.52mm ID x 1.78mm

4шт.

21

87754139

SPACER,11mm ID x 20mm OD x 8mm L

1шт.

22

87689273

BRACKET

1шт.

23

47127719

BRAKE DISC

5шт.

24

87372779

HUB

1шт.

25

14307824

SCREW,M10 x 1.25 x 45mm, Cl 8.8

2шт.

26

14307624

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

5шт.

27

84338868

STUD

2шт.

28

87689278

BUSHING,40mm ID x 44mm OD x 20mm L

2шт.
