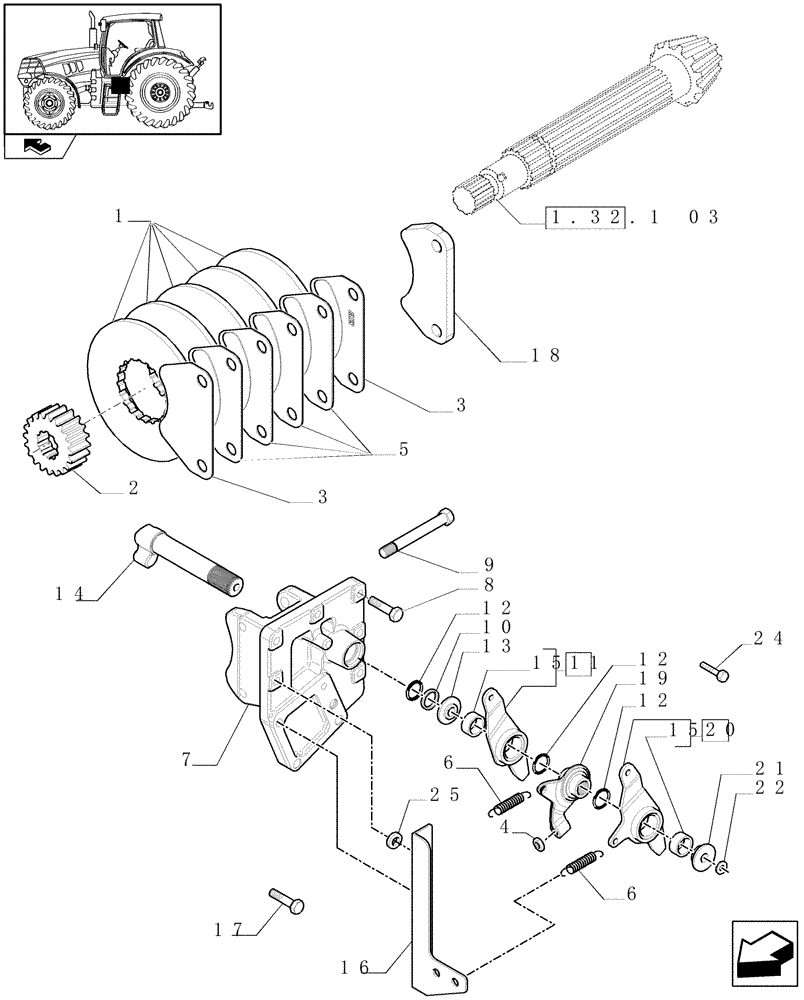

Запчасти Case IH PUMA 140 (1.65.5/01[01]) - ELECTRONIC PARK LOCK - PARKING BRAKE - C6834 (VAR.330083-331083) (05) - REAR AXLE

1

47127719

BRAKE DISC

5шт.

2

87372779

HUB

1шт.

3

5199607

BRAKE PAD,3.1mm Thk

2шт.

4

10791414

THIN NUT,M16 x 1.5

1шт.

5

5199788

BRAKE PAD,4.2mm Thk

4шт.

6

84484950

SPRING

EXTENSION

2шт.

7

87379786

SUPPORT

1шт.

8

14307824

SCREW,M10 x 1.25 x 45mm, Cl 8.8

5шт.

9

84168003

SET SCREW,M14 x 1.5 x 1.5mm, Class 8.8

2шт.

10

5198146

SHIM,28.1mm ID x 31.9mm OD x 4mm Thk

1шт.

11

87689320

BRAKE LEVER

EPL

1шт.

12

14458080

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

5шт.

13

87689269

SHIM,28mm ID x 59mm OD x 3.7mm Thk

1шт.

14

87740212

LEVER

1шт.

15

87689278

BUSHING,40mm ID x 44mm OD x 20mm L

2шт.

16

87751900

SUPPORT

1шт.

17

14307624

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

5шт.

18

47127226

BRAKE PAD,9mm Thk

4шт.

19

87689271

HUB

1шт.

20

87689319

BRAKE LEVER

Parking Brake

1шт.

21

87689270

SHIM,12.5mm ID x 59mm OD x 6.7mm Thk

1шт.

22

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

23

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

24

87741803

SET SCREW,Hex, M16 x 1.25 x 70mm

1шт.

25

87754139

SPACER,11mm ID x 20mm OD x 8mm L

1шт.
