Запчасти Case IH PUMA 140 (1.49.6) - REAR BALLAST (65KG) FOR BAR AXLE (VAR.330628-331628) (05) - REAR AXLE

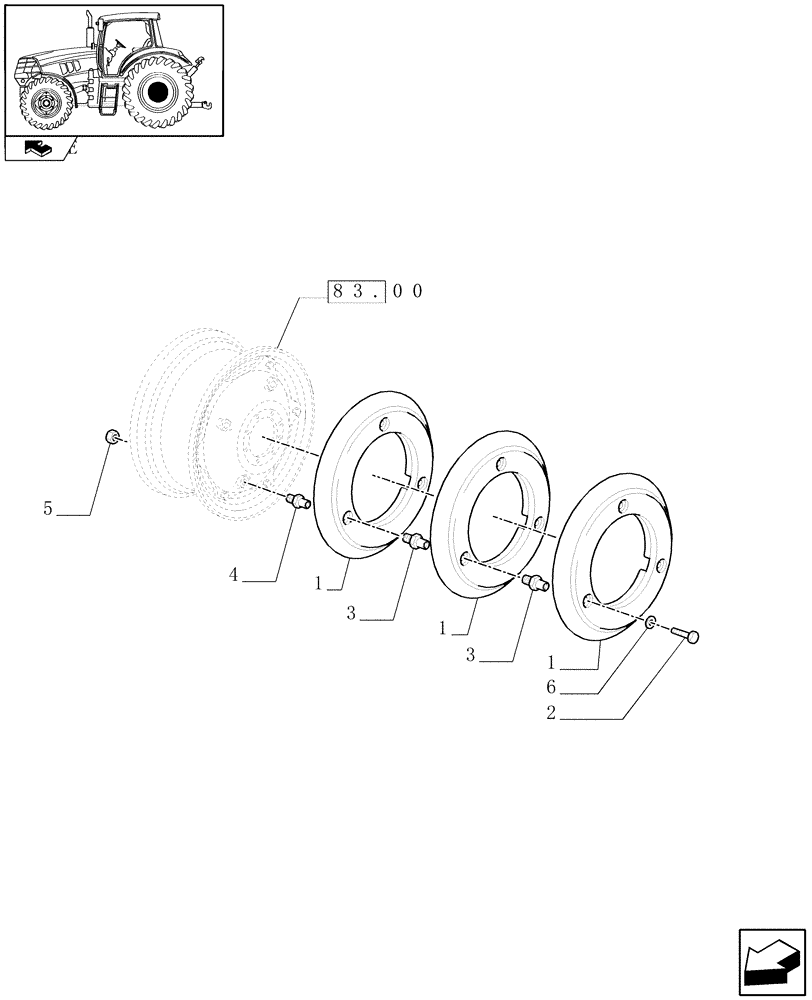

Схема запчастей Case IH PUMA 140 - (1.49.6) - REAR BALLAST (65KG) FOR BAR AXLE (VAR.330628-331628) (05) - REAR AXLE
1
1
6
1
4
83.00
home
2
5
3
3

Артикул

Название

Примечание

Количество

1

47127369

WHEEL WEIGHT,65kg

(KG 390)

6шт.

2

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

3

44018047

SCREW,M16 x 1.5 x 78mm

M16 x 1.5 x 78

12шт.

4

44018046

SCREW,M16 x 1.5 x 60mm

M16 x 1.5 x 60

6шт.

With MAVT Wheels and all Fixed Wheels only, VAR.330628

1шт.

Basildon Production only

1шт.

5

12164124

NUT,M16 x 1.5, Cl 8

6шт.

With MAVT Wheels and all Fixed Wheels only, VAR.330628

1шт.

Basildon Production only

1шт.

6

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

6шт.

Выбрано товаров: 10
