(1.48.1/04) - ADDITIONAL HUBS FOR DUAL OUTER STEEL WHEELS FOR 112" BAR AXLES - HUBS (VAR.330340)

Запчасти Case IH PUMA 140 (1.48.1/04) - ADDITIONAL HUBS FOR DUAL OUTER STEEL WHEELS FOR 112" BAR AXLES - HUBS (VAR.330340) (05) - REAR AXLE

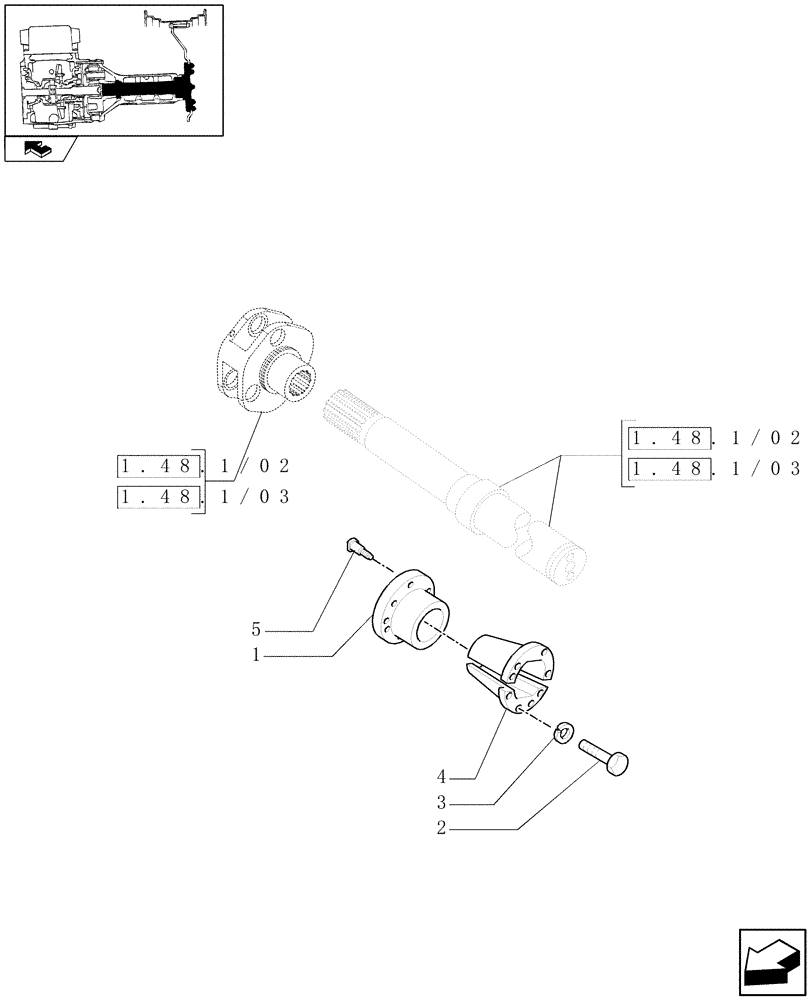

Схема запчастей Case IH PUMA 140 - (1.48.1/04) - ADDITIONAL HUBS FOR DUAL OUTER STEEL WHEELS FOR 112" BAR AXLES - HUBS (VAR.330340) (05) - REAR AXLE
1
4
3
1.48.1/02
1.48.1/03
1.48.1/02
1.48.1/03
home
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87688498

HUB

, Serial Range: -C7400

2шт.

1

47728569

HUB

, Start Serial: D7400

2шт.

2

11125124

BOLT,Hex, M20 x 70, 8.8

, Serial Range: -C7400

12шт.

2

11125424

SCREW,Hex, M20 x 85mm, Cl 8.8

, Start Serial: D7400

12шт.

3

87306816

CONE WASHER,20.00mm ID x 36.00mm OD x 4.50mm

12шт.

4

5198605

BUSHING

, Serial Range: -C7400

2шт.

4

47699301

HUB

, Start Serial: D7400

2шт.

5

87651026

NUT,M18, 1.5mm Pitch, Captive Wshr

8шт.
