Запчасти Case IH PUMA 140 (1.48.1/02) - REAR HEAVY DUTY 98" AND 112" BAR AXLES - GEARS AND SHAFTS (VAR.330331-331331-330332-331332) (05) - REAR AXLE

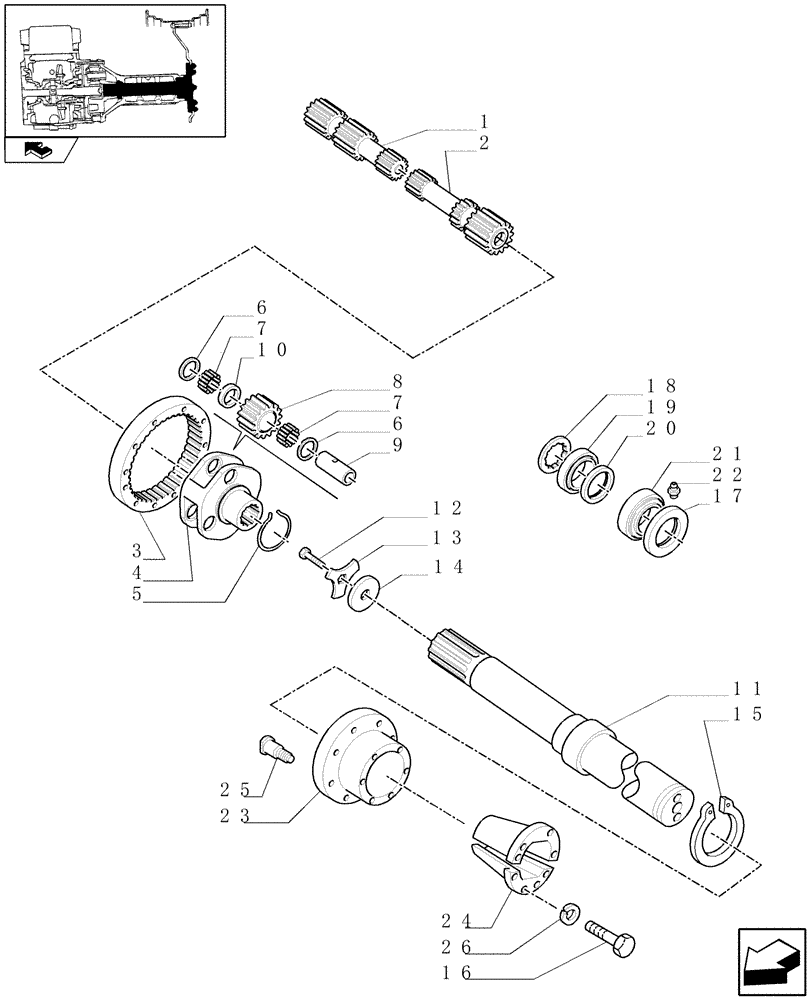

Схема запчастей Case IH PUMA 140 - (1.48.1/02) - REAR HEAVY DUTY 98" AND 112" BAR AXLES - GEARS AND SHAFTS (VAR.330331-331331-330332-331332) (05) - REAR AXLE
11
7
19
22
home
4
20
18
16
23
15
10
21
13
12
17
25
1
26
8
6
7
14
5
2
3
9
24
6

Артикул

Название

Примечание

Количество

1

5170962

HALF SHAFT,294.00mm

RH

1шт.

2

5170963

HALF SHAFT,312.00mm

LH

1шт.

3

5162266

RING GEAR,63T, 63mm L

2шт.

4

5162271

SUPPORT

2шт.

5

4998880

SNAP RING,4mm Thk, Ext

2шт.

6

5145983

THRUST WASHER,53.6mm ID x 84mm OD x 1mm Thk

12шт.

7

5102466

NEEDLE BEARING,53.5mm ID x 67.5mm OD x 32mm W

6шт.

8

5162282

DRIVEN GEAR,25T

6шт.

9

5162172

PIN,53.5mm OD x 129mm L

6шт.

10

5102468

SPACER,56mm ID x 67.4mm OD x 5mm L

6шт.

11

5198600

SHAFT,27T, 910.5mm L

98"

2шт.

11

5198601

SHAFT,27T, 1083mm L

112"

2шт.

12

15984331

BOLT,Hex, M18 x 1.5 x 50mm, Cl 10.9, Full Thd

2шт.

13

5146156

LOCKING PLATE

2шт.

14

5162141

DISC,18.5mm ID x 87.5mm OD x 8mm Thk

2шт.

15

11071374

CIRCLIP,3mm Thk

2шт.

16

11125124

BOLT,Hex, M20 x 70, 8.8

, Serial Range: -C7400

12шт.

Rear Heavy Duty 98" and 112" Bar Axles for Steel Wheels, VAR.330331-330332

1шт.

16

11125424

SCREW,Hex, M20 x 85mm, Cl 8.8

, Start Serial: D7400

12шт.

17

5199548

OIL SEAL,95.00mm ID x 130.00mm OD x 16.00mm

2шт.

18

5121648

THRUST WASHER,73mm ID x 106mm OD x 5mm Thk

2шт.

19

24903490

BEARING ASSY,80mm ID x 125mm OD x 29mm W

2шт.

20

5162403

SEAL,82mm ID x 105mm OD x 12mm Thk

2шт.

21

24903500

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

2шт.

22

13407211

LUBE NIPPLE,M10 x 1

2шт.

23

87688497

HUB

Incl 25, Serial Range: -C7400

2шт.

Rear Heavy Duty 98" and 112" Bar Axles for Steel Wheels, VAR.330331-330332

1шт.

23

47728581

HUB

, Start Serial: D7400

2шт.

Rear Heavy Duty 98" and 112" Bar Axles for Steel Wheels, VAR.330331-330332

1шт.

24

5198605

BUSHING

, Serial Range: -C7400

2шт.

24

47699301

HUB

, Start Serial: D7400

2шт.

25

87651027

STUD,M18 x 1.5 x 85mm, Cl 10.9

8шт.

Rear Heavy Duty 98" and 112" Bar Axles for Steel Wheels, VAR.330331-330332

1шт.

26

87306816

CONE WASHER,20.00mm ID x 36.00mm OD x 4.50mm

12шт.

Выбрано товаров: 34
