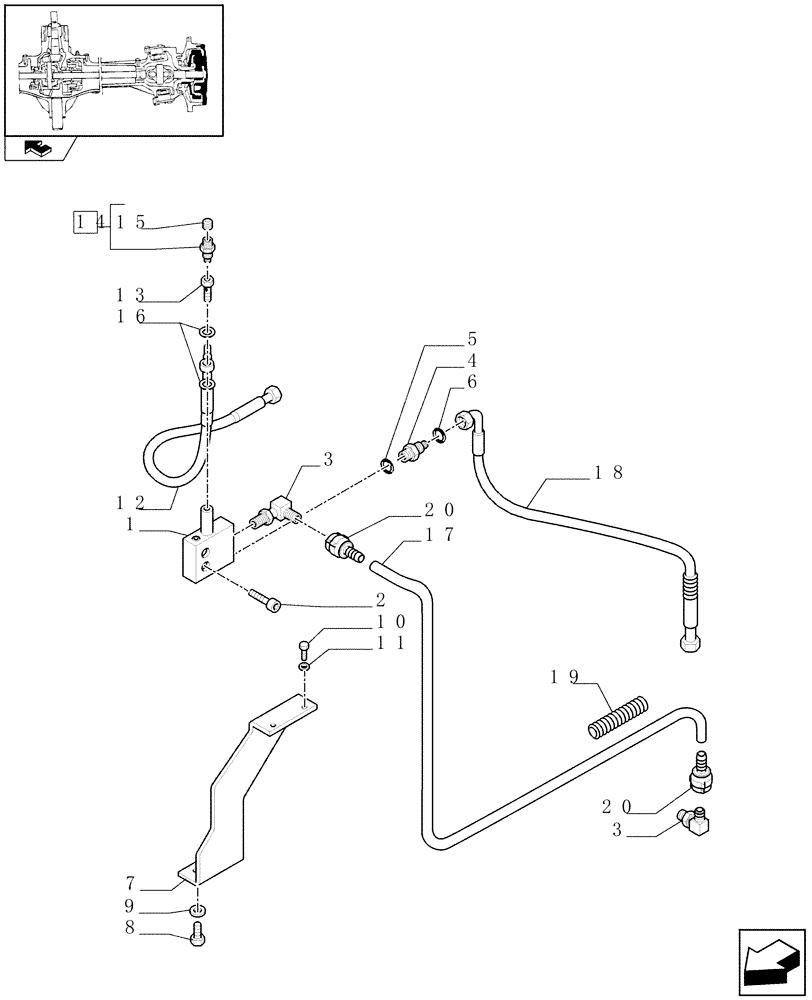

Запчасти Case IH PUMA 140 (1.40.5/14[03]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - BRAKE VALVE AND PIPES (VAR.330426) (04) - FRONT AXLE & STEERING

1

47131070

BRAKE VALVE

1шт.

2

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

2шт.

3

82037643

HYD CONNECTOR

1шт.

4

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

Incl. 5, 6

1шт.

5

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

6

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

7

87735744

BRACKET

1шт.

8

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

9

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

10

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

11

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

12

87547658

HOSE

M/Cyl. to Front Brakes

1шт.

13

82018915

BANJO BOLT,M12 x 1 x 23mm

1шт.

14

81874592

BLEEDER,M12 x 1 x 15.50mm

1шт.

15

81871475

CAP,4.7mm ID x 13mm OD x 10mm L

1шт.

16

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

17

87695287

FLEXIBLE HOSE

Front Brake Return

1шт.

18

87702761

HOSE

Front Brake Feed, 619MM, Serial Range: -C6680

1шт.

18

84255601

HOSE,670.00mm

Front Brake Feed, 670MM, Start Serial: D6680

1шт.

19

87695290

HOSE PROTECTION

1шт.

20

87695284

END FITTING

2шт.
