(1.40.4/02[02]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND STEERING SENSOR - STEERING KNUCKLES AND HUBS (VAR.330408)

Запчасти Case IH PUMA 140 (1.40.4/02[02]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND STEERING SENSOR - STEERING KNUCKLES AND HUBS (VAR.330408) (04) - FRONT AXLE & STEERING

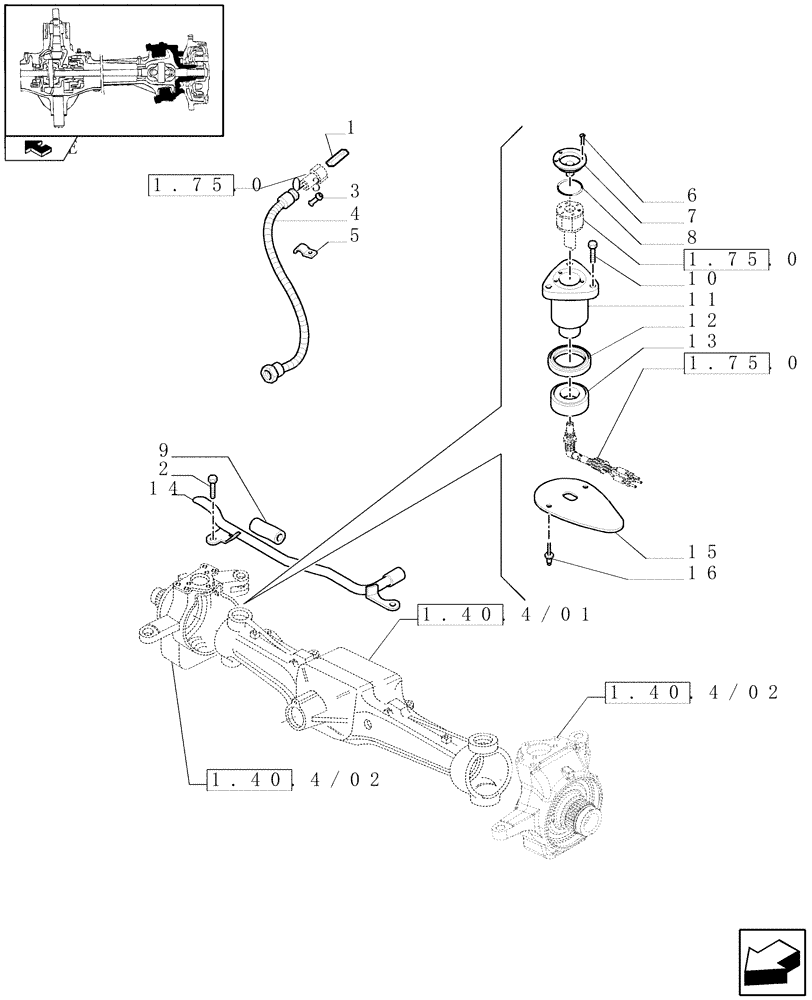

Схема запчастей Case IH PUMA 140 - (1.40.4/02[02]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND STEERING SENSOR - STEERING KNUCKLES AND HUBS (VAR.330408) (04) - FRONT AXLE & STEERING
7
4
2
12
8
10
3
6
1.40.4/01
1.40.4/02
16
15
5
1.40.4/02
1.75.0 03
1.75.0 03
1.75.0 03
home
11
14
9
1
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82918451

SPACER

1шт.

2

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

1шт.

3

82918419

PLUG

1шт.

4

82016109

FLEXIBLE SHEATH

1шт.

4

87658190

FLEXIBLE SHEATH

1шт.

5

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

6

13299218

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

3шт.

7

84384510

TOP

1шт.

8

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

9

87329095

HOSE PROTECTION

Termoreduction

1шт.

9

87619627

HOSE PROTECTION

1шт.

10

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.

11

87382577

BALL STUD

BALL PIN

1шт.

12

47137702

SEAL,56mm ID x 70mm OD x 10mm Thk

1шт.

13

47137677

SPH ROLLER BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

1шт.

14

87588344

TUBE,12.00mm OD x 380.40, 49.00mm

For male connector protection

1шт.

15

87315098

SHIELD

1шт.

16

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

2шт.
