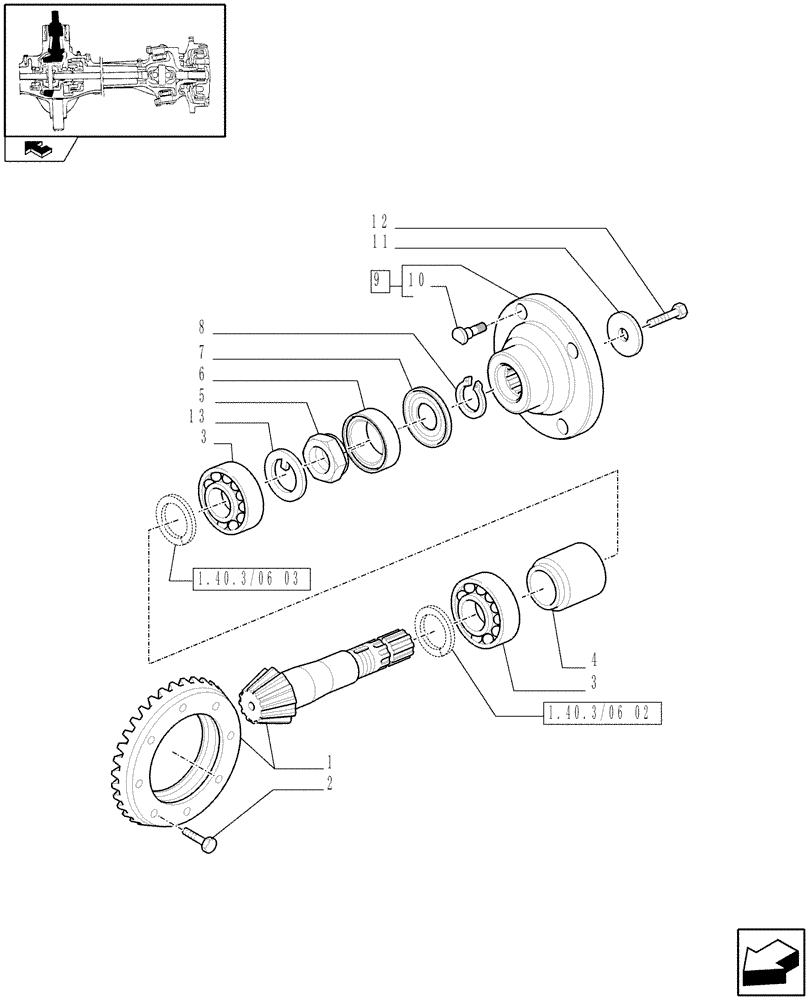

Запчасти Case IH PUMA 140 (1.40.3/06[01]) - (CL.3) SUSPENDED FRONT AXLE WITH HYDR. DIFFER. LOCK, STEERING SENSOR AND BRAKES - BEVEL GEAR PAIR (VAR.330427) (04) - FRONT AXLE & STEERING

1

87660362

BEVEL GEAR

Ratio 10/34, Serial Range: -C7034

1шт.

1

47582843

BEVEL GEAR

Ratio 10/34, Start Serial: D7034

1шт.

2

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

3

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

41.275 x 82.550 x 26.543

2шт.

4

5197256

SPACER

1шт.

5

5119147

RING NUT,M40 x 1.5

, Serial Range: -C7034

1шт.

5

84289762

NUT,M40,1.5mm Pitch

M40 x 1.5, Start Serial: D7034

1шт.

6

87349657

SEAL,37mm ID x 85mm OD x 15.5mm Thk

1шт.

7

87528144

SEAL PROTECTION

1шт.

8

11068476

SNAP RING,M36, Ext

1шт.

9

87350786

FLANGE

1шт.

10

87550808

PIN,12.5mm OD x 37mm L

4шт.

11

87350787

WASHER

1шт.

12

15540431

SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

13

84161677

E-RING

, Start Serial: D7034

1шт.
