Запчасти Case IH PUMA 140 (1.40.2/04) - (CL.3) SUSPENDED FRONT AXLE WITH HYDR. DIFFER. LOCK AND STEERING SENSOR - LINK (VAR.330414) (04) - FRONT AXLE & STEERING

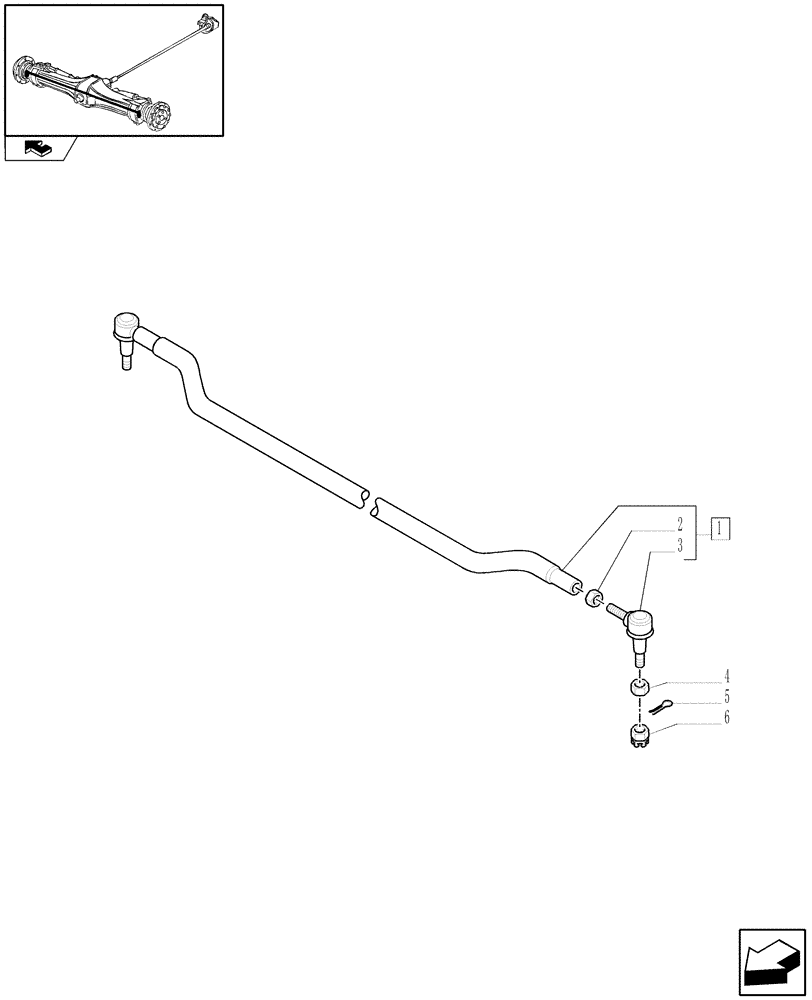

Схема запчастей Case IH PUMA 140 - (1.40.2/04) - (CL.3) SUSPENDED FRONT AXLE WITH HYDR. DIFFER. LOCK AND STEERING SENSOR - LINK (VAR.330414) (04) - FRONT AXLE & STEERING
4
3
6
home
1
5
2

Артикул

Название

Примечание

Количество

1

5197798

TRACK ROD ASSY,M24 x 1.5mm ID x 1597mm L

1шт.

2

10726911

THIN NUT,Thin, M24 x 1.5 x 10.00mm High, ZND

1шт.

3

87542553

BALL JOINT

1шт.

4

12576014

NUT,Prevailing Torque, M18, 1.5mm Pitch, 16.00mm High, Cl 04, DAC

2шт.

5

10733801

COTTER PIN,M4 x 36

2шт.

6

10724611

NUT

M18 x 1.5

2шт.

Выбрано товаров: 6
