(1.40.1/10A) - AXLE-SHAFT ARTICULATED - BREAKDOWN

Запчасти Case IH PUMA 140 (1.40.1/10A) - AXLE-SHAFT ARTICULATED - BREAKDOWN (04) - FRONT AXLE & STEERING

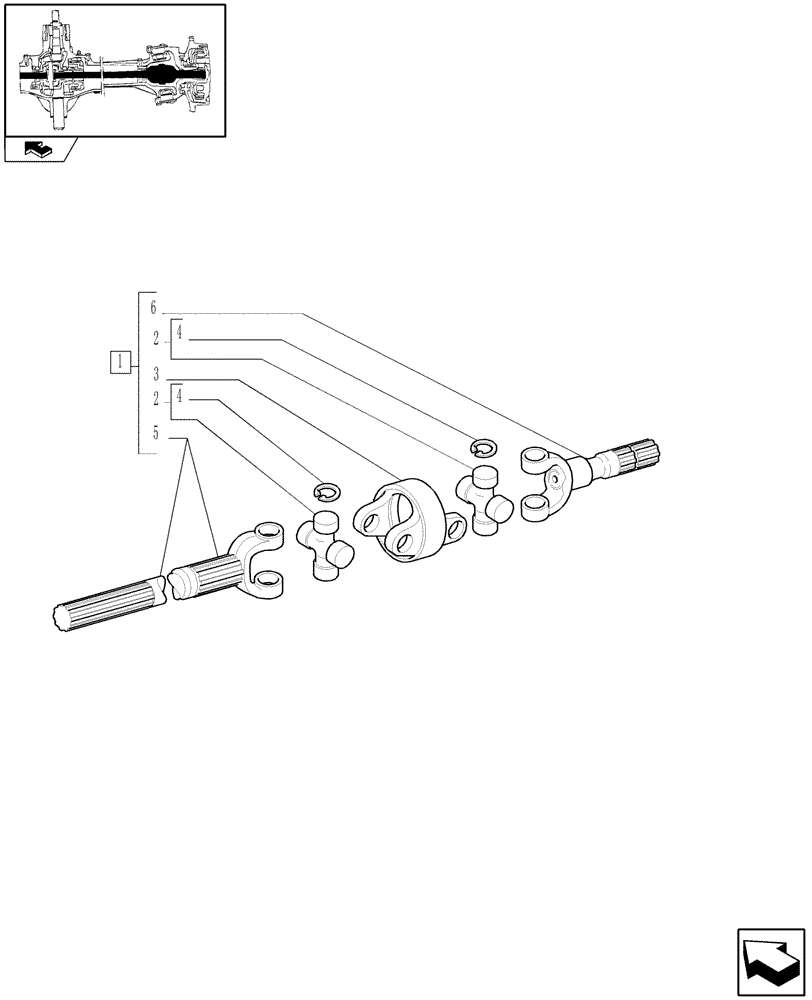

Схема запчастей Case IH PUMA 140 - (1.40.1/10A) - AXLE-SHAFT ARTICULATED - BREAKDOWN (04) - FRONT AXLE & STEERING
1
2
4
3
5
4
2
6
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87743318

SHAFT

ASSY, RH

1шт.

1

87743319

SHAFT

ASSY, LH

1шт.

2

87747763

U-JOINT SPIDER,30.15mm Cap Dia, 81.9mm L

2шт.

3

87747754

YOKE

1шт.

4

87747761

CIRCLIP

8шт.

5

87747751

LONG SHAFT FORK,708.00mm

LH, 707MM

1шт.

5

87747753

LONG SHAFT FORK,728.00mm

RH, 727MM

1шт.

6

87747757

SHORT SHAFT FORK,233.60mm

231.8MM

2шт.
