Запчасти Case IH PUMA 140 (1.32.8[03]) - FRONT DIFFERENTIAL LOCK PIPES (03) - TRANSMISSION

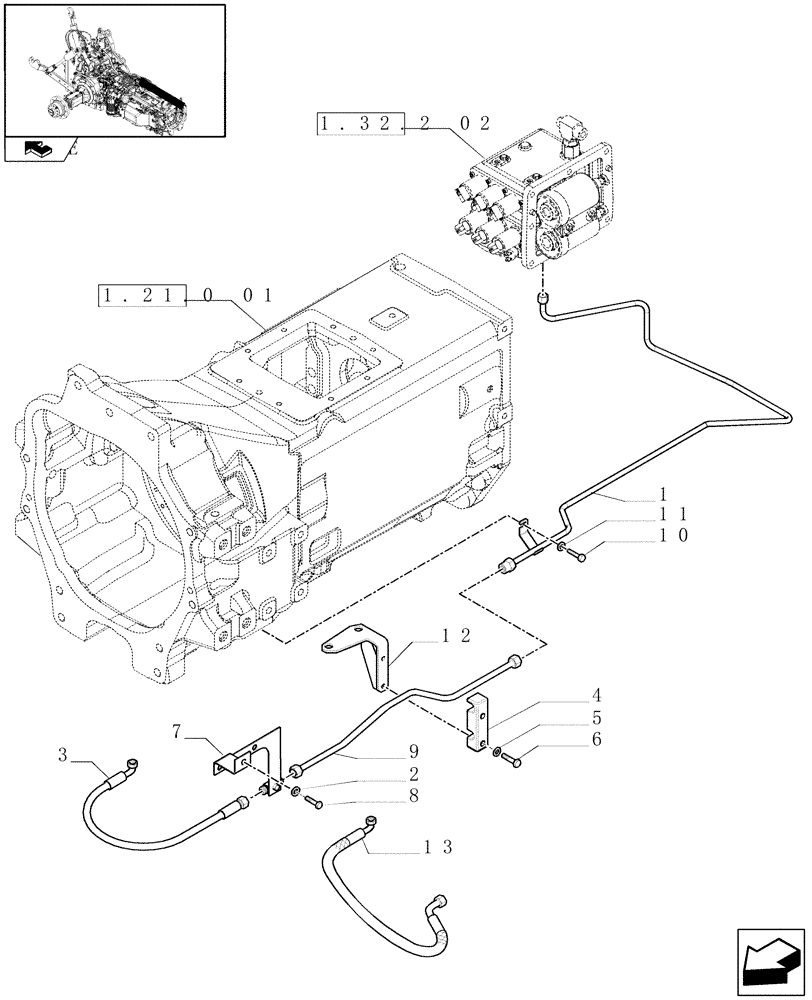

Схема запчастей Case IH PUMA 140 - (1.32.8[03]) - FRONT DIFFERENTIAL LOCK PIPES (03) - TRANSMISSION
1
12
8
2
5
7
4
6
13
10
11
3
9
1.21.0 01
home
1.32.2 02

Артикул

Название

Примечание

Количество

1

87679090

HYD TUBE,10 mm DIA

Front Differential Lock

1шт.

2

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

2

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

3

87352542

HOSE,550.00mm

Power Steering

1шт.

4

82029228

CLAMP,2 Hoses

1шт.

5

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

6

16050621

SCREW,Hex, M6 x 30mm, Cl 8.8, Full Thd

2шт.

7

87317792

SUPPORT

1шт.

8

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.

9

87533928

TUBE,8 mm ID x 10 mm OD x 730, 372 mm L

Front Differential Lock

1шт.

9

87533929

TUBE,8 mm ID x 10 mm OD x 776, 500 mm L

Front Differential Lock

1шт.

Suspended Front Axles, VAR.330414-330427-330429-330430

1шт.

10

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

11

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

12

82037221

BRACKET

1шт.

13

82036783

FLEXIBLE HOSE,9.53mm ID x 580mm L, SAE 100R2

Power Steering

1шт.

Suspended Front Axles, VAR.330414-330427-330429-330430

1шт.

Выбрано товаров: 17
