Запчасти Case IH PUMA 140 (1.32.5/03[01]) - FULL POWER SHIFT (50KM/H) - HYDRAULIC CENTRAL SPLITTER (VAR.332247) (03) - TRANSMISSION

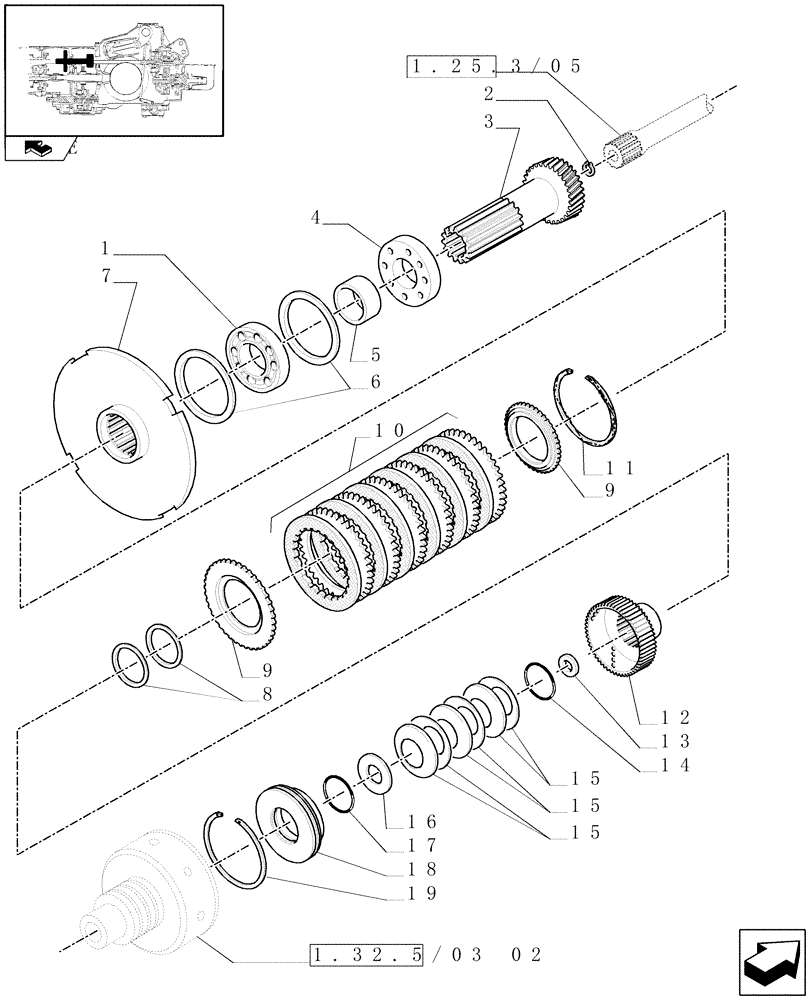

Схема запчастей Case IH PUMA 140 - (1.32.5/03[01]) - FULL POWER SHIFT (50KM/H) - HYDRAULIC CENTRAL SPLITTER (VAR.332247) (03) - TRANSMISSION
12
19
11
14
15
13
4
2
5
9
3
17
15
9
18
16
1
8
15
10
7
home
1.32.5/03 02
6
1.25.3/05

Артикул

Название

Примечание

Количество

1

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

D=45 x 85 x 19

1шт.

2

11058676

SNAP RING,M28, Int

1шт.

3

87588682

DRIVING GEAR,11T, 28T, 41T

1шт.

4

5150900

BEARING, ROLLER, CYL,45mm ID x 85mm OD x 19mm W

D=45 x 85 x 19

1шт.

5

87398247

SPACER,45.1mm ID x 55mm OD x 24mm L

1шт.

6

11062176

CIRCLIP,M85, Int

2шт.

7

87586677

SPLINED RING,28T, 172.5mm OD x 42mm ID

1шт.

8

11069076

SNAP RING,M45, Ext

2шт.

9

5167824

DISC,113.5mm ID x 154.35mm OD x 7.5mm Thk

2шт.

10

87596476

CLUTCH PACK

1шт.

11

47132979

CIRCLIP,2mm Thk

1шт.

12

87586679

HUB

1шт.

13

5175981

CIRCLIP,1.5mm Thk

1шт.

14

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

1шт.

15

87547947

SPRING,Belleville, 60mm ID x 1.9mm Thk

6шт.

16

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

1шт.

17

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

18

87547824

PISTON

D=142 x 3.2

1шт.

19

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

1шт.

Выбрано товаров: 19
